Cummins Mining Engines: What Are They and Why Are They Trusted?
In modern open-pit and underground mining operations, time is money. Once a 300-ton mining haul truck or a massive excavator shuts down due to a powertrain failure, the resulting chain reaction can cost a mine tens of thousands of dollars per hour. In such high-pressure, extreme operating environments, the reliability of the powertrain dictates the lifeline of the entire production line.
As the absolute backbone of global mining power, Cummins Mining Engines have become the premier choice for global mining giants, Original Equipment Manufacturers (OEMs), and maintenance engineers, thanks to their exceptional Total Cost of Ownership (TCO) performance, unparalleled durability, and high uptime.
This article delivers a deep dive into the core technical advantages of Cummins mining engines, the application scenarios of mainstream models, and how to maximize returns through scientific maintenance across the full equipment lifecycle.

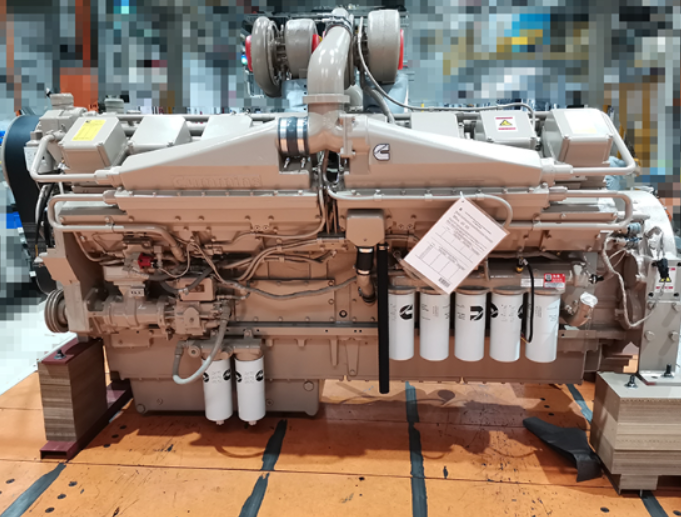

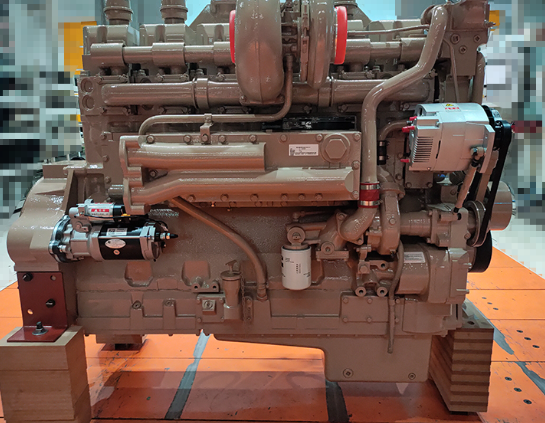

What are Cummins Mining Engines and Common Models?
Cummins mining engines are powerful and highly-horsepowered engines which have been specifically designed for tough and constant conditions of heavy loads which prevail in open pit and underground mines.
The range comprises the traditional K series (which comprises the models KTA19 and KTA50; they employ either pure mechanical or semi-electronic controls and possess a very strong and sturdy construction), as well as the latest QSK series which is fully electronically controlled and features a Modular Common Rail Fuel System, or MCRS. This series is characterized by a very high torque reserve and Time Between Overhaul (TBO).
Common Cummins Mining Engine Models
| Engine Model | Horsepower Range | Main Applied Equipment (Applications) | Key Features & Selection Selling Points |
| K19 / KTA19-C QSK19 | 506 – 800 hp | Medium excavators, blast hole drill rigs (e.g., Atlas Copco, Sandvik), large bulldozers. | Inline 6-cylinder, 19-liter architecture. The KTA19 features a pure, rock-solid design with an immense global population; the QSK19 offers higher power density and mature technology. |
| QSK38 | 1045 – 1400 hp | Large bulldozers, high-tonnage wheel loaders. | 38-liter displacement, built for endurance, optimized for frequent load-variation cycles, delivering an ultra-low TCO. |
| K50 / KTA50-C QSK50 | 1400 – 2000 hp | 150-250 ton mining haul trucks (e.g., Komatsu, NHL), large hydraulic excavators. | A 50-liter, V16 behemoth. The KTA50-C is the industry’s most trusted classic truck powertrain; the QSK50 pairs with the MCRS system to deliver outstanding fuel economy. |
| QSK60 | 1875 – 3000 hp | Ultra-class haul trucks (300+ tons). | The absolute benchmark for transport capacity in ultra-large mines worldwide, offering unmatched continuous uptime. |
Why Do Mining Companies Trust Cummins Engines?
Mining environments are brutal, ranging from low-oxygen, high-altitude zones above 4,000 meters in the Chilean Andes, to the scorching, dust-choked deserts of Australia, to frigid arctic mines. Standard industrial engines simply cannot withstand such continuous high-load impacts. Cummins has established itself as the industry benchmark through specialized R&D tailored specifically to mining conditions:
Two-Stage Turbocharging Technology
At mines that operate at great heights, due to the thinness of the atmosphere, there is a large de-rating of the engine power. In the Cummins engines having high horsepower, such as QSK60 engines, two-stage turbocharging technology is used. This technology ensures a good air flow at great heights.
Modular High-Pressure Common Rail Fuel System (MCRS)
Cummins MCRS technology is the heart of its fuel efficiency and power delivery. The system maintains ultra-high injection pressures across all RPM ranges, achieving optimal fuel atomization. This not only yields an excellent low-speed torque rise but also significantly dampens engine combustion noise and vibration, extending the fatigue life of the cylinder block and internal components.
New Industry Standard for Life to Overhaul
The design philosophy behind Cummins engines is “toughness.” By utilizing high-strength structural castings, specially heat-treated crankshafts, and wear-resistant cylinder liners, the QSK and classic K Series engines frequently achieve tens of thousands of hours of operation before their first major overhaul (Time Between Overhaul, or TBO), far outlasting competing products.
Main Application Sectors of Cummins Mining Engines
Under extreme, heavy-load mining conditions, Cummins high-horsepower engines provide a rock-solid power guarantee for core mining equipment through high availability, low TCO, and robust transient load response.

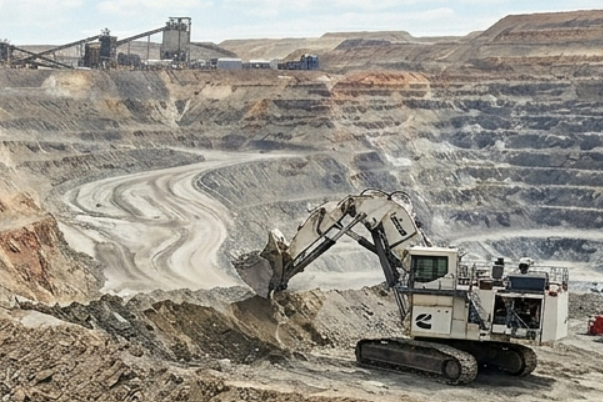

Large Hydraulic Excavators and Shovels
Large excavators and front shovels work under harsh load conditions, and usually have to operate continuously for 24 hours, 7 days a week. The Cummins engine has outstanding transient load response, and this ensures that the heavy-duty hydraulic system responds very fast.
Mining Haul Trucks
The mining haul trucks always work under harsh environmental conditions, such as having to drive up an incline while carrying their maximum load. The Cummins engine is equipped with very large flywheel horsepower and very high availability, offering ultra-class mining haul trucks of 100 to over 360 tonnes of load at extremely low mining costs.
Drill Rigs
Blast hole and down-the-hole (DTH) drill rigs are frequently exposed to high dust, extreme heat, or freezing cold in remote deserts and wastes, requiring engines to run under high loads for extended periods. Cummins mining engines feature excellent load response, maintaining stable operation even during prolonged high-load drilling through hard rock strata.
Mining Equipment Used for Underground Mining
Mine shafts in underground mining are confined spaces with low efficiency in heat dissipation. This means that underground LHDs and underground haul trucks need to be small and explosion-proof and with ultra-low emissions. Power solutions from Cummins provide high performance with lower emission levels.
Mining Power Generation
Most large mines are located in remote or high-altitude regions far from the public utility grid, meaning production and living rely entirely on an independent microgrid. Power-station-type engines developed on the Cummins high-horsepower platform feature superior block-load acceptance capabilities, serving as prime power sources to provide 24/7 stable, continuous electricity for mining equipment, lighting systems, and office facilities.

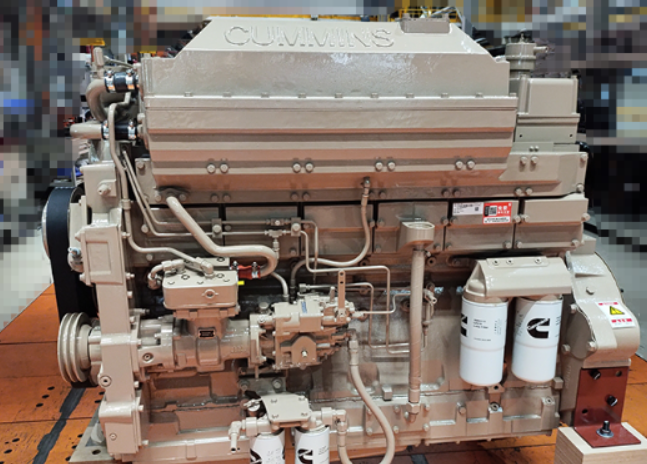

How to Select Right Cummins Mining Engines?
In asset procurement and supply chain management for the heavy mining industry, rational model selection not only guarantees continuous on-site productivity but also optimizes the mine’s ROI from the very source. We provide the following deep procurement recommendations tailored to different mining conditions:
For Drill Rigs & Auxiliary Equipment: Prioritize High Environmental Adaptability and a Massive Global Footprint
For blast hole drill rigs, DTH drills, and high-pressure mine dewatering pump stations, the KTA19-C (with the “-C” suffix indicating construction/industrial version) or the modern QSK19 is the ideal power choice. The inline 6-cylinder, 19-liter platform offers an extremely flexible installation footprint within this class, perfectly fitting into the compact engine bays of mainstream OEMs like Atlas Copco and Sandvik.
Procurement Pitfall Guide
In high-abrasion environments with extreme dust or sand, it is highly recommended to co-configure high-efficiency, genuine Fleetguard two-stage heavy-duty air filtration systems during purchase. Because the KTA19 has a massive global population in mines, its aftermarket overhaul parts supply is exceptionally mature, and purchasing this model significantly reduces parts inventory stocking pressures in remote mine sites.
For Main Haulage Fleets & Heavy Shovels: Lock in High Flywheel Output and Prioritize Supply Chain Continuity
For ultra-large mining haul trucks (such as Komatsu and NHL) ranging from 150 to over 360 tons, as well as giant hydraulic excavators, the KTA50-C, QSK50, and QSK60 are the absolute backbones securing 24/7 all-weather mine transport. These continuous heavy-load conditions require exceptionally high and sustained Flywheel Horsepower to shorten cycle times during the loaded uphill hauling phase.
Technical Selection Trade-Offs
For an underground mining operation that takes place in an isolated location where fuel quality may be inconsistent and maintenance practices follow traditional methods, the traditional mechanical KTA50-C V16 engine is still a very economical option due to the simplicity and ruggedness of its design, as well as its tolerance for poor quality fuel.
However, when there are strict emission standards (such as the EPA Tier 4 Final / EU Stage V), and maximum efficiency is desired, then the QSK50/QSK60 with the MCRS is the preferred engine.
Lifecycle Procurement Strategy
Given the immense wear and tear on high-horsepower engines in mining trucks, it is strongly advised to establish an annual strategic supply agreement with a professional vendor for “engine overhaul parts and core components such as high-pressure fuel pumps and turbochargers” right when purchasing the equipment.
Insisting on genuine Cummins overhaul kits not only seamlessly restores the overhauled engine to 100% of its original factory-rated performance but is also the core secret to driving equipment availability close to 99%.
How to Keep Your Cummins Mining Engine in Peak Condition
How do you keep a Cummins engine in peak performance over a 10-year or even 15-year lifecycle? The answer lies in green emissions compliance, preventive maintenance, and a stable supply of high-quality, genuine spare parts.
1. Embrace Green Emission Standards
As global demand for sustainable development and “green mines” escalates, mining operations face stringent emission reduction pressures. By integrating Selective Catalytic Reduction (SCR) systems and Diesel Particulate Filters (DPF), the new generation of Cummins mining engines easily satisfies the world’s strictest EPA Tier 4 Final and EU Stage V emission standards. Furthermore, select models already support up to a 20% blend of biodiesel, helping mining companies gain a competitive edge under future carbon tax policies.
2. Strictly Utilize OEM High-Standard Filters
Mining environments are thick with highly abrasive dust like silica. Once micron-sized particles breach a filter and enter the fuel system or cylinders, they cause catastrophic wear to high-pressure common rail systems or mechanical fuel pumps. Using genuine Fleetguard filters is the first and most critical line of defense protecting the precision internal components of the engine.
3. The Irreplaceability of Genuine Cummins Parts
The mining engines run under long hours of full load, high temperature, and high pressure. Even small differences in metallurgical specifications or accuracy in machining non-original cylinder liners, piston rings, high pressure fuel injection pumps, reconditioning kits, or turbochargers can easily result in fatigue failure and engine failure due to broken connecting rods or cracks in the block. Following original Cummins engines and Cummins genuine parts are the only way to achieve this.
4. Oil Analysis and Digital Diagnostics
By leverage Cummins’ advanced digital remote diagnostic systems paired with regular lubrication oil and coolant fluid analysis, technicians can capture microscopic warning signs like metal wear debris or excessive moisture before a failure occurs. This shifts maintenance from “reactive repair” to “predictive maintenance,” making an equipment availability rate near 99% attainable.
Conclusion: Choosing Reliable Power is Choosing the Future of the Mine
A Cummins mining engine, whether it is the time-tested KTA19-C / KTA50-C or the advanced QSK Series, is far more than a machine providing horsepower; it is a core asset that ensures the mining logistics chain remains uninterrupted and operational costs remain controlled. From the replacement of core assemblies to the installation of every single genuine overhaul part, only high standards yield high returns.
As a professional Cummins engine and parts supplier, Longshine deeply understands the stringent requirements our mining customers place on timeliness and quality. If you are looking for efficient Cummins mining original engine turnkey solutions, technical support, or need to procure high-quality genuine engine parts, feel free to contact Longshine at any time. We will provide you with professional engine selection advice and highly competitive parts supply solutions, ensuring your mining equipment always runs at full throttle and maximum efficiency!
