Cummins Trailer Generator: How to Choose the Right Mobile Generator Set?
In construction engineering, mining operations, remote oil and gas extraction, and emergency rescue fields, a stable and mobile power supply is the core lifeline that ensures smooth project operations. Facing remote off-grid areas or sudden power outages, a high-performance, tow-and-go Trailer-Mounted Generator not only prevents tens of thousands of dollars in downtime losses, but also significantly improves on-site operational efficiency.
As a benchmark in the global power equipment industry, trailer-mounted generator sets powered by Cummins engines have become the top choice for global industrial and commercial customers, thanks to their exceptional fuel economy, rugged structure, and outstanding continuous power generation capabilities. This article will thoroughly analyze the core advantages, typical application scenarios, selection factors, and daily maintenance tips for Cummins trailer generators to help you select the most suitable mobile power solution.

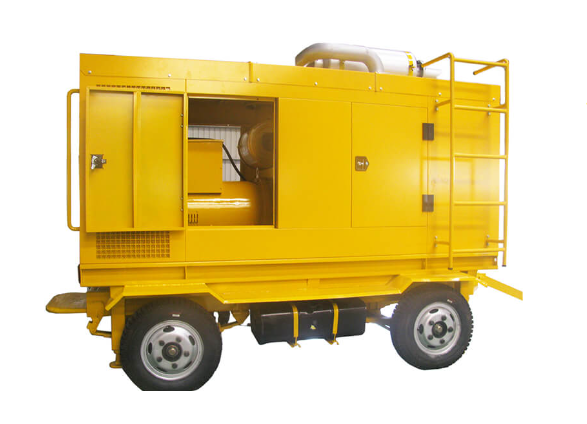

What is a Cummins Trailer Generator?
A Cummins trailer generator is a portable power station that integrates a diesel generator set onto a heavy-duty mobile trailer chassis. Its core advantage lies in being “ready to tow, ready to plug and play.”
1. Six Core Components of a Trailer Generator
Power System: Diesel Engine by Cummins with Stamford (or equivalent) Alternator.
Trailer Chassis: Axles, Tires, Suspension, Hitches, and Brakes & Taillights as per Road Regulations (like DOT).
Protective Enclosure: Weather-resistant galvanized canopy with high density noise-absorbent foam (sound restricted to 65-75 dB at 7 meters distance).
Control & Distribution: Original PowerCommand® or Deepsea intelligent control panel + industrial quick-connect sockets.
Base Fuel Tank: Leak-proof double-wall base fuel tank supporting 12–24+ hours of continuous full-load operation.
Leveling Jacks: Mechanical/hydraulic outriggers ensuring parking stability on uneven ground.
2. Trailer Generator vs. Stationary Generator
| Comparison Dimension | Trailer-Mounted Generator | Stationary Generator |
| Mobility | Extremely high; rapidly deployed and relocated via vehicle towing. | No mobility; requires crane lifting and anchoring onto a concrete foundation. |
| Chassis Compliance | Integrated with axles, tires, and braking systems for legal road transport. | No wheeled chassis; cannot be directly towed on highways. |
| Fuel System | Integrated high-capacity base fuel tank; no external tank required. | Relies on an external large fuel tank or underground storage tank. |
| Application Scenarios | Mobile operations (construction, mine inspections, emergency rescue). | Permanent/standby power for fixed facilities (factories, data centers). |
| Power Distribution Interface | Equipped with industrial quick-connect sockets for plug-and-play operation. | Hardwired directly to the building’s ATS cabinet or main distribution busbar. |
What are the Application Scenarios for a Cummins Trailer Generator?
Choosing the appropriate trailer generator begins by understanding what the intended function of the electrical generating process to be performed by the trailer-mounted generator is. Different scenarios will have varying requirements of power generation, time, and versatility.
2.1 Construction and Road Engineering
Construction sites and roadwork projects frequently require temporary power supply for power tools, lighting equipment, welding gear, and other auxiliary facilities.
In these cases, mobile generators could be re-deployed as construction sites change. The choice should consider currents of equipment starts, simultaneous loads, temperature at the site, dusty conditions, and the ease of towing the trailer to the construction site. In the case where there is heavy electrical equipment involved in the project, check the capacity of the generator to cater for transient loads.
2.2 Oil & Gas Exploration and Energy Projects
Oil and Gas Exploration, Production and Engineering operations could be situated outside the reach of the grid network. Trailer mounted diesel generators could provide electrical power to field auxiliary equipment, temporary facilities and construction phases.
In such cases, buyers must consider the aspects of operational continuity, refueling, environmental temperature, ease of maintenance and safety factors. In case the equipment has to run in certain hazardous zones, buyers must verify whether the generator is safe to operate in those hazardous zones according to their design and specifications, instead of just considering their suitability for industrial generators.
2.3 Mining and Remote Work Sites
Mining, remote engineering, and infrastructure projects often face long power transmission distances, power grid connection difficulties, or frequent equipment relocations.
In these environments, beyond rated power, consider altitude, ambient temperature, dust, ventilation, and equipment maintenance conditions. High altitude or elevated temperatures can impact the actual output capacity of both the engine and generator; confirm derating requirements with the manufacturer when necessary.
2.4 Temporary Power Supply and Emergency Backup Power
Trailer mounted generators could also be used in temporary installations, alternative sources of power during maintenance of equipment, and some emergency situations.
Nevertheless, in case of usage of the equipment for fire protection, medical services and other life safety systems, it must comply with code requirements. Do not assume compliance with corresponding emergency power standards based solely on the unit’s mobile capability.

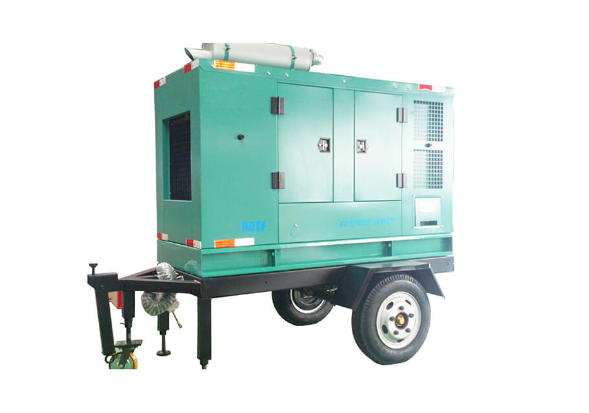

Why Choose a Cummins Trailer Generator?
Compared to stationary generators or standard mobile power units, trailer-mounted generator sets powered by Cummins systems demonstrate significant technical advantages in design and performance:
Superior Mobility and Weatherproof/Soundproof Enclosures (DOT-Compliant & Soundproof Enclosure)
Compliant Chassis and Tow Frame: Equipped with heavy-duty axles, high-strength tires, safety chains, and tow hitches (Pintle hook / Ball hitch) complying with transportation safety standards (such as DOT standards) for safe towing on complex road conditions or highways.
All-Weather Canopy: Constructed with galvanized steel or electrostatically sprayed anti-corrosion enclosures featuring strong rain, dust, and corrosion resistance. Silent Type units are lined with high-density acoustic foam, controlling operating noise within 65–75 dB(A) at 7 meters—ideal for urban construction or large outdoor events.
High Fuel Efficiency and Eco-Friendly Emission Standards (Tier 4 Final / Stage V)
Advanced Fuel Injection System: Cummins High-Pressure Common Rail (HPCR) fuel injection technology precisely controls fuel delivery for complete diesel combustion, significantly reducing long-term fuel costs.
Strict Compliance: Units are available to meet the latest global emission standards, such as EPA Tier 4 Final and EU Stage V, helping projects navigate strict environmental reviews in urban and industrial zones.
Robust Continuous Load Capacity and Extreme Environment Adaptability Cummins diesel engines are renowned for high torque and reliability, capable of handling high-ratio transient loads. Whether in 50°C hot deserts, high-altitude regions, or -20°C freezing environments, the thermal management systems and cold-start assist devices ensure one-touch startup and stable output.
Global After-Sales Service Network and Spare Parts Accessibility Whether for component replacement or emergency repairs, Cummins’ global service network and abundant spare parts inventory minimize downtime and protect your project schedule.
Common Cummins Trailer Generator Specifications & Selection Reference
To help you intuitively understand the parameters of Cummins trailer generators across different power ranges, the table below summarizes common configuration specifications:
| Parameter / Feature | Light-Duty Mobile Unit | Medium-Duty Mobile Unit | Heavy-Duty Industrial Unit |
| Prime Power | 20 kW – 60 kW | 80 kW – 200 kW | 250 kW – 500 kW+ |
| Recommended Engine Model | Cummins X2.5 / 4BT3.9 | Cummins 6BT5.9 / QSB7 | Cummins QSL9 / QSX15 |
| Trailer Chassis Structure | Single Axle | Tandem Axle | Multi-Axle / Heavy-Duty Custom Chassis |
| Braking System | Surge Brakes | Electric Brakes / Air Brakes | Air Brakes + ABS |
| Base Fuel Tank Runtime | 24+ hours (Double-wall leak-proof tank) | 24+ hours (Double-wall leak-proof tank) | 12 – 24 hours |
| Main Application Scenarios | Small job sites, municipal maintenance, mobile lighting | Medium construction projects, commercial emergency, rental | Mining, oil & gas wellheads, prime power for major infrastructure |

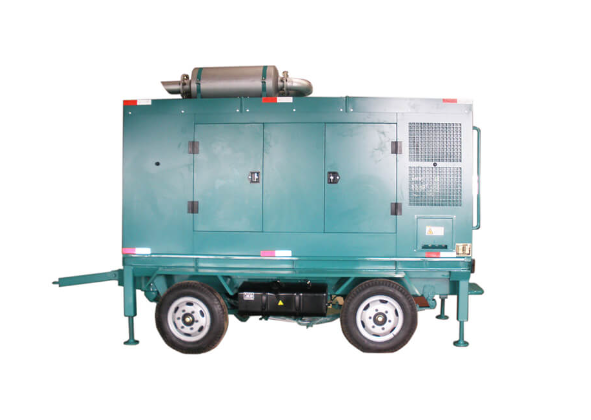

How to Choose the Right Cummins Trailer Generator for Your Needs?
Prior to purchasing a Cummins trailer generator set, consider the following aspects to determine that the equipment suits your usage scenario:
Accurately Calculate Power Demands:
Identify your application, that is, select the unit depending on Prime Power for prime power over time in isolated regions; and select the unit depending on Standby Power for sudden power failure situations. In addition, in case the application includes inductive loads like water pumps and air compressors, the start-up current would be 3-7 times their rated current.
Select the Right Chassis and Braking System:
Choose the chassis based on road conditions: select standard highway tires and surge brakes for flat roads; configure high-clearance chassis, off-road tires, and reinforced suspensions for rugged mines or muddy job sites. Ensure the trailer is equipped with LED taillights, reflective markings, safety cables, and braking systems that comply with local road regulations for transport safety.
Configure Control Systems and Automation Features:
Choose generator sets that come with Deepsea, ComAp, or original Cummins PowerCommand® control panels to monitor the voltage, frequency, oil pressure, coolant temperature, and fuel level readings. With the Telematics/IoT remote monitoring, one will be able to attain GPS positioning, fuel monitoring, and pre-warning faults. In addition, having an ATS connection set aside enables easy integration with the power source systems.
How to Select a Reliable Cummins Supplier?
Selecting the generator set-up is the first step, but the next step is no less important. There are many assemblers that assemble generators under the name “Cummins,” but the quality of generators varies greatly. To find a good assembler and avoid poor-quality assembly plants, take into account the following aspects:
Verify Official Authorization and Genuine Lineage:
It is important to check whether the suppliers are qualified. Qualified suppliers will have official OEM certificates from Dongfeng Cummins, Chongqing Cummins, or the original factory. Moreover, the original engine parts will have serial numbers (SN) that will be checked through Cummins official sources.
Inspect Assembly Workmanship and Full-Load Testing:
Good quality manufacturers have standard methods for welding, anti-corrosive painting, and wiring procedures to ensure that the trailer roof is protected against rust in the outside environment. The most important requirement is that the unit should be tested in the factory with dummy load test (25% to 110% step load report).
Evaluate Trailer Chassis Customization Capabilities:
Suppliers can customize the chassis based on road conditions, such as providing heavy suspension and high ground clearance for muddy roads in the mining area, or tandem axle brakes for long-distance pulling. Make sure that the trailer lights, brake system, and safety chains meet road transport standards and are qualified for transportation.
Confirm After-Sales Networks and Spare Parts Response Speed:
Find out whether the supplier fits into the seamless integration with Cummins’ original factory’s after sales network, and find out the availability of spare parts such as filters and belts. Check the warranty period as well, which is normally either 1 year or 1,000 hours.
Select Longshine for Procuring Cummins Trailer Generator Sets
As a Cummins supplier, Longshine provides trailer-mounted generator sets powered by Cummins diesel engines, suitable for construction, industrial projects, temporary power supply, and other mobile power scenarios. We offer a variety of model options to help customers compare product configurations and find the right mobile power generation solution based on project requirements.
Why Choose Longshine?
Cummins-Powered Generator Sets: Providing trailer generator sets driven by Cummins diesel engines in order to meet all sorts of electricity needs.
Multiple Models Available: Range of products includes different types such as LS90TF, LS250TF, and LS450TF, making it easier for consumers to select proper machinery depending on technical specifications and electricity needs.
Product Selection Support: Our help in choosing proper products depending on customer requirement scenarios and electricity requirements.
Convenient Procurement Consultation: Longshine provides product consulting, model comparison, and quotation communication services to help customers advance their procurement workflows efficiently.
Select the Right Cummins Trailer Generator Set for Your Project
Whether you need to supply power for a construction site, industrial facility, or temporary work location, choosing a trailer-mounted generator set that matches your actual load and working environment is crucial.
Welcome to visit our Trailer Generator Set product page to explore available models. If you do not find the exact configuration you need, contact Longshine for consultation on Cummins-powered trailer generator sets and custom quotes tailored to your project.
