Product Description

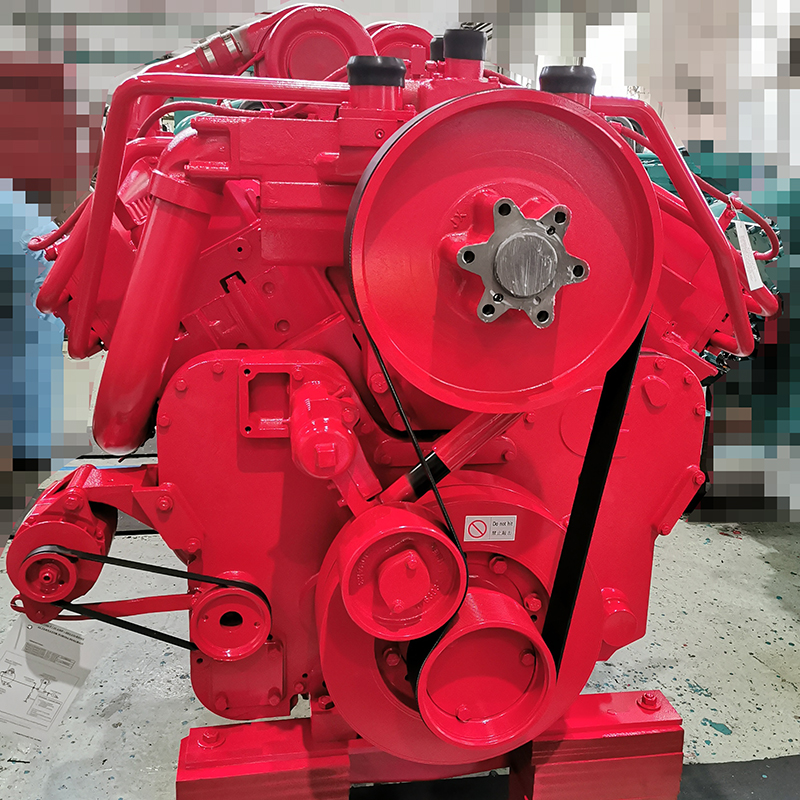

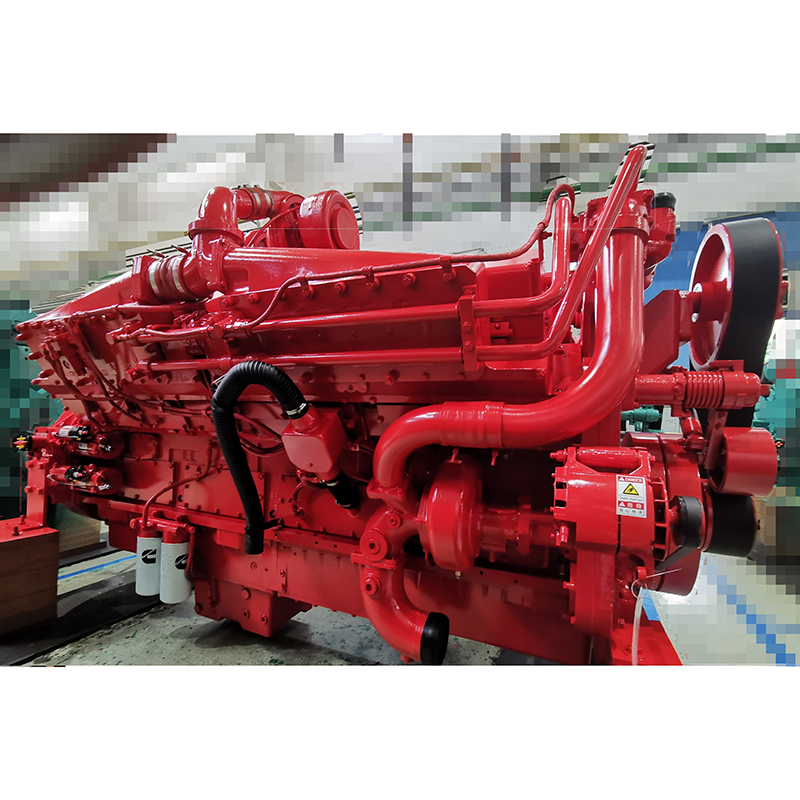

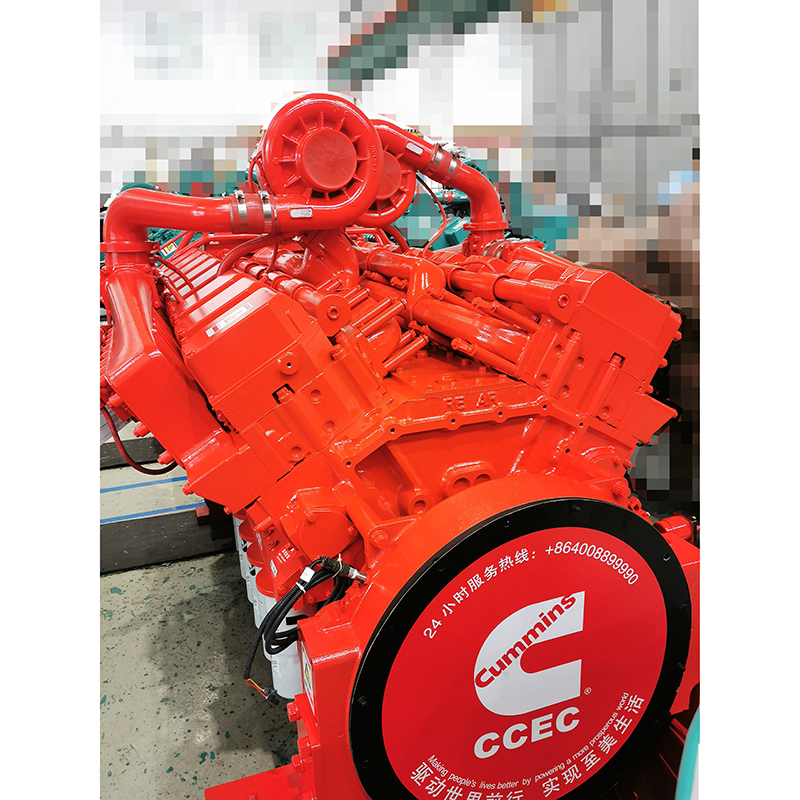

Cummins K50 KTA50-P Original Engine for Pump is a powerful 50-liter heavy-duty diesel engine engineered for the most demanding pump drive applications. With robust turbocharging and aftercooling systems, the KTA50-P delivers exceptional horsepower, superior torque, and unmatched reliability in critical operations. Designed for continuous duty in harsh environments, it is the ideal solution for large-scale pumping systems where maximum performance and durability are essential.
Cummins KTA50-P2220 Technical Specification Sheet
| Parameter | Specification |
| Engine Model | KTA50-P2220 |
| Maximum Power (HP) | 2220 HP |
| Maximum Power (kW) | 1656 kW |
| Rated Speed (RPM) | 1900 |
| Displacement (L) | 50.3 |
| Bore x Stroke (mm) | 159 x 159 |
| No. of Cylinders | 16 / V-type |
| Air Intake Method | Dual Turbocharged and Aftercooled |
| Compression Ratio | 13.9:1 |
| Fuel System | PT Fuel System |
| Cooling System | Closed Water-Cooled System |
| Starting Method | Electric / Air Start (optional) |
| Governor Type | Electronic Governor |
| Emission Standard | Non-road use, not emissions certified |
| Typical Applications | Industrial pumps |
Cummins KTA50-P Series Core Specification Comparison
| Parameter | KTA50-P1760 | KTA50-P1900 | KTA50-P2000 | KTA50-P2220 |
| Max Power (HP) | 1760 HP | 1900 HP | 2000 HP | 2220 HP |
| Max Power (kW) | 1312 kW | 1417 kW | 1491 kW | 1656 kW |
| Rated Speed (RPM) | 1800 | 1800 | 1800 | 1900 |
| Displacement (L) | 50.3 | 50.3 | 50.3 | 50.3 |
| Bore x Stroke (mm) | 159 x 159 | 159 x 159 | 159 x 159 | 159 x 159 |
| No. of Cylinders | 16 / V-type | 16 / V-type | 16 / V-type | 16 / V-type |
| Air Intake Method | Turbocharged & Aftercooled | Turbocharged & Aftercooled | Turbocharged & Aftercooled | Dual Turbocharged & Aftercooled |
| Compression Ratio | 13.9:1 | 13.9:1 | 13.9:1 | 13.9:1 |
| Fuel System | PT Fuel System | PT Fuel System | PT Fuel System | PT Fuel System |
| Cooling System | Closed Water-Cooled | Closed Water-Cooled | Closed Water-Cooled | Closed Water-Cooled |
| Starting Method | Electric / Air Start | Electric / Air Start | Electric / Air Start | Electric / Air Start |
| Governor Type | Electronic Governor | Electronic Governor | Electronic Governor | Electronic Governor |
Features & Benefits
- Massive Power Output – 50L displacement with outstanding horsepower to drive extra-large pump systems.
- Heavy-Duty Durability – Built with a reinforced structure to handle extreme workloads and continuous operation.
- Advanced Turbocharged & Aftercooled System – Guarantees stable performance, fuel efficiency, and high endurance.
- Proven Reliability in Harsh Conditions – Trusted for oilfields, offshore platforms, and mining operations.
Typical Applications
- Large-scale Flood Control and Drainage Pumps
- Heavy-Duty Fire-Fighting Pump Systems
- Oil & Gas Industry Pumping Operations
- Offshore and Marine Large-Capacity Pumps
- Industrial High-Volume Pump Systems
