Detailed Product Information
Product Description

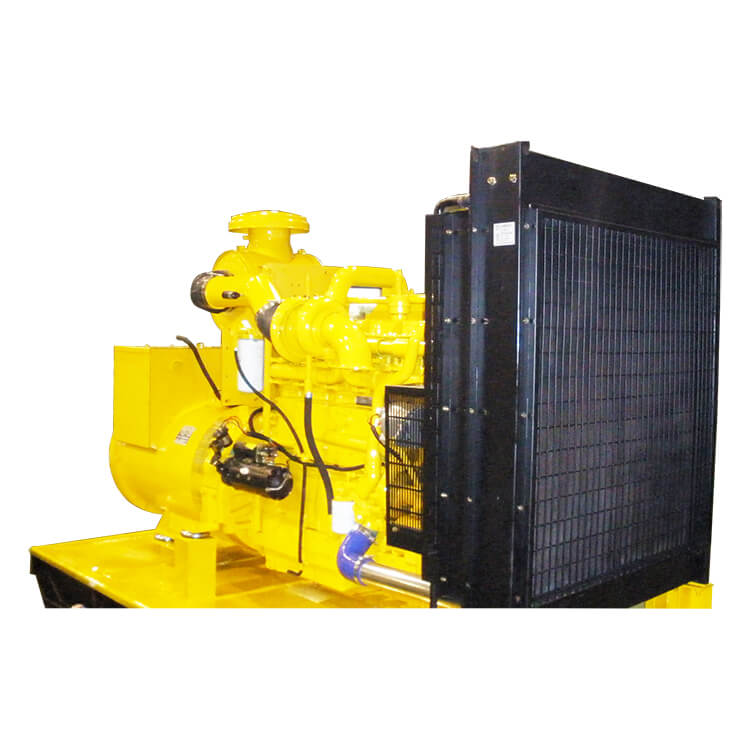

Cummins LS450GF KTA19-G3 563kVA Diesel Waterproof Generator Set is a high-performance, heavy-duty power generation system designed for continuous or standby use in industrial and commercial settings.
Driven by the legendary Cummins KTA19-G3 engine, this generator delivers a dependable 450kW (563kVA) output with superior fuel efficiency, long runtime, and low maintenance. Engineered with a robust waterproof enclosure, it withstands harsh outdoor conditions such as rain, dust, and humidity, making it an ideal solution for remote sites, factories, construction zones, and emergency response facilities.
Main Features
- Cummins KTA19-G3 Engine – Trusted industrial-grade engine with turbocharging and aftercooling for stable, continuous high-load performance.
- 563kVA / 450kW Rated Output – Delivers consistent power for large-scale equipment and operations.
- 1500 RPM – 50Hz System – Standard operating speed for global compatibility in 50Hz regions.
- Waterproof Canopy – Ensures safe outdoor operation with protection against rain, dust, and moisture.
- Multiple Application Scenarios – Ideal for power plants, mines, manufacturing plants, backup systems, and mobile operations.
Generator Specification
Generator Model | LS520GF |
Engine Model | KTA19-G8 |
Rated speed | 1500rpm |
Fuel Consumption(L/h) | 117 |
Prime Power | 465KW/580KVA |
Standby Power | 520KW/650KVA |
Length(mm) | 3350 |
Width(mm) | 1500 |
Height(mm) | 1900 |
Net Weight(kg) | 4986 |
Waterproof Generator Set List
Generator Model | Engine Model | Standby Power | Prime Power | Speed | Fuel Consumption | ||
kW | kVA | kW | kVA | rpm | L/h | ||
LS22GF | 4B3.9-G2 | 22 | 28 | 20 | 25 | 1500 | 5 |
LS26GF | 4B3.9-G2 | 26 | 33 | 24 | 30 | 1800 | 6 |
LS36GF | 4BT3.9-G2 | 36 | 45 | 32 | 40 | 1500 | 8 |
LS40GF | 4BT3.9-G2 | 40 | 50 | 36 | 45 | 1800 | 9 |
LS50GF | 4BTA3.9-G2 | 50 | 63 | 45 | 56 | 1500 | 13 |
LS60GF | 4BTA3.9-G2 | 60 | 75 | 54 | 68 | 1800 | 14 |
LS75GF | 6BT5.9-G2 | 75 | 94 | 68 | 85 | 1500 | 17 |
LS85GF | 6BT5.9-G2 | 85 | 106 | 75 | 94 | 1500 | 19 |
LS90GF | 6BT5.9-G2 | 90 | 113 | 80 | 100 | 1800 | 20 |
LS100GF | 6BTA5.9-G2 | 100 | 125 | 90 | 113 | 1500 | 23 |
LS110GF | 6BTA5.9-G2 | 110 | 137 | 100 | 125 | 1500 | 25 |
LS120GF | 6BTAA5.9-G2 | 120 | 150 | 110 | 137 | 1500 | 26 |
LS132GF | 6BTAA5.9-G2 | 132 | 165 | 120 | 150 | 1800 | 30 |
LS140GF | 6CTA8.3-G2 | 140 | 175 | 120 | 150 | 1500 | 30 |
LS160GF | 6CTA8.3-G2 | 160 | 200 | 140 | 175 | 1800 | 36 |
LS180GF | 6CTAA8.3-G2 | 180 | 225 | 160 | 200 | 1500 | 40 |
LS220GF | NT855-GA | 220 | 275 | 200 | 250 | 1800 | 41 |
LS250GF | NTA855-G1A | 250 | 313 | 220 | 275 | 1500 | 55 |
LS280GF | NTA855-G1 | 280 | 350 | 250 | 313 | 1800 | 61 |
LS300GF | NTA855-G1B | 300 | 375 | 275 | 344 | 1800 | 68 |
LS315GF | NTA855-G4 | 315 | 394 | 280 | 350 | 1500 | 68 |
LS330GF | NTAA855-G7 | 330 | 413 | 300 | 375 | 1500 | 73 |
LS350GF | NTA855-G3 | 350 | 438 | 320 | 400 | 1800 | 80 |
LS400GF | KTA19-G2 | 400 | 500 | 360 | 450 | 1800 | 85 |
LS450GF | QSZ13-G3 | 450 | 563 | 400 | 500 | 1500 | 98 |
LS450GF | KTA19-G3A | 450 | 563 | 400 | 500 | 1500 | 98 |
LS500GF | KTA19-G3A | 500 | 625 | 450 | 563 | 1800 | 113 |
LS505GF | KTAA19-G5 | 505 | 631 | 450 | 563 | 1500 | 110 |
LS550GF | KTAA19-G5 | 550 | 688 | 470 | 588 | 1800 | 117 |
LS560GF | KTA38-G | 560 | 700 | 500 | 625 | 1500 | 122 |
LS570GF | QSKTAA19-G3 | 570 | 713 | 520 | 650 | 1500 | 130 |
LS660GF | KTA38-G2 | 660 | 838 | 600 | 750 | 1500 | 147 |
