How to Tell If You Need to Replace the 5.9 Cummins Fuel Filter Housing or Just the Fuel Filter?

When maintaining a 5.9 Cummins engine, the Fuel Filter and its Housing are key components that directly affect vehicle starting, power output and the stability of the fuel circuit system. Many car owners are often unsure whether to replace the filter or if there is a problem with the Housing when their vehicles encounter difficulties in starting, reduced power or abnormal fuel lines. Incorrect judgment not only increases maintenance costs but may also lead to the long-term existence of problems and even cause engine damage. This article will provide you with clear judgment methods from multiple perspectives such as symptoms, investigation procedures, and actual cases, helping you determine when to replace the Housing and when only the filter element needs to be replaced, thereby reducing maintenance risks and costs.

Why Do We Need To Tell The Problem Sources Of Fuel Filter And Fuel Filter Housing?

Many car owners will directly replace the filter element but ignore the status of the Housing. In fact, although these two are located close to each other in the oil circuit system, their sources of problems are different:

1. The cost difference is obvious: The Fuel Filter is a consumable and has a low price. Once the Housing is damaged, the unit cost is relatively high and the installation difficulty is also great.

• The difficulty of replacement varies: The filter element replacement is simple and usually can be completed within a few minutes. Housing replacement involves the disassembly of the oil circuit and the installation of the sealing ring, which requires more tools and operational skills.

• Misjudgment may lead to repeated repairs: if only the filter element is replaced but the Housing is faulty, the vehicle may still experience difficulty in starting, reduced power or oil leakage.

Therefore, accurately diagnosing the source of the problem not only saves costs for car owners but also avoids repetitive work.

Starting From Vehicle Symptoms: How To Determine Whether To Replace Fuel Filter Housing Or Fuel Filter?

When there are problems with the fuel system, the performance of the vehicle itself often provides initial clues. The following symptoms are worth noting:

• Difficulty in cold starting: The engine needs to be started multiple times, especially in low-temperature environments.
• Weak acceleration or slow throttle response: The vehicle lacks power during driving, especially under high load or when going uphill.
• Abnormal engine oil or diesel smell: Abnormal leakage or backflow in the oil circuit causes the odor to escape.
• Obvious oil seepage or dripping: especially at the filter element seat or joint, can be confirmed by visual inspection.
• Idle speed fluctuates: The engine idles unstably, manifested as idle speed shaking or speed fluctuations.

The problem persists after replacing the filter element: If the filter element has been updated but the vehicle issue still exists, the Housing is likely to have malfunctioned.

By observing these symptoms, it is possible to initially determine whether the problem might lie in the filter element or the Housing, providing a direction for subsequent investigation.

Common Problems and Check Methods of Fuel Filter

Filter element clogging is one of the most common problems in fuel systems, especially when the filter element has not been replaced for a long time or when low-quality fuel is used. Its typical manifestations include:

• Insufficient oil pressure and decreased power
• It starts up normally, but performs poorly under high load
• The symptoms disappeared immediately after changing the filter element

If a vehicle shows these conditions, usually checking and replacing the filter element first is the most economical and quick solution. The service life of the filter element is closely related to the quality of the fuel. Regular replacement can prevent the decrease in power and the increase in engine load caused by clogging.

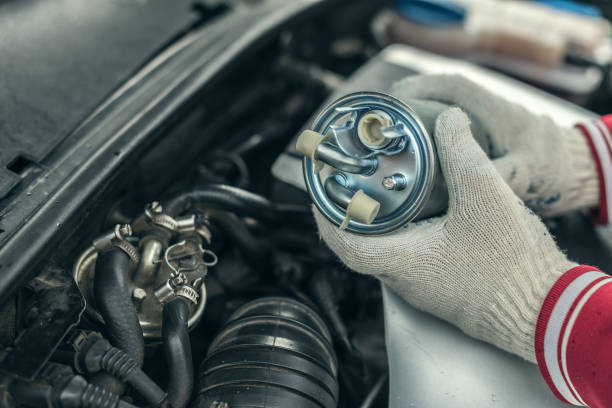

Clear Signals Of Faults In Fuel Filter Housing

Compared with the filter element, the problem of Housing may be more concealed, but it has a greater impact on the oil circuit system. The following signals indicate that there may be a malfunction in Housing:

• Oil seepage or leakage occurs at the connection
• The Housing material is aged or cracked, and the sealing ring is damaged.
• Continuous Air leak
• Even if the filter element has been replaced, the engine is still difficult to start or the power is unstable.
• The integrated component on the Housing has failed
• Such as short circuit of the heater, aging of the O-ring, poor return of the pump handle, etc.
• The Housing is deformed or the threads are damaged
• The filter element cannot be tightened and the seal is not tight.
• The oil circuit pressure is abnormal, but the filter element is in normal condition

After testing the oil pressure, abnormalities were found, indicating that the problem might lie in the internal structure or sealing area of the Housing. The faults of Housing are usually not easy to be completely accurately judged by appearance, so it is more reliable to combine symptoms and oil pressure detection.

Step-by-step Inspection Process for Car Owners

To avoid misjudgment and unnecessary replacement, the following steps can be followed for troubleshooting:

1. Check the appearance: Confirm whether the Housing has cracks, oil leakage or thread damage.

• Confirm the service life of the filter element and the quality of the oil: Understand the last replacement time and the condition of the oil.

• Replace the filter element for verification: Low cost and can quickly determine whether the filter element is clogged.

• Observe the symptoms after replacing the filter element: If the problem persists, focus on checking the Housing.

• Check the heaters and sensors on the Housing: Ensure that the integrated components are functioning properly.

• Oil pressure detection (if available) : Determine whether there is a problem with the Housing based on the oil pressure data.

Through step-by-step investigation, the source of the problem can be identified and unnecessary maintenance costs can be reduced.

When The Fuel Filter Housing Must Be Replaced?

The following situations indicate that the Housing has reached its service life or is severely damaged and needs to be replaced:

• Obvious oil leakage or dripping
• The filter element cannot be sealed
• Continuous Air leak
• The internal heater is damaged and cannot be replaced separately
• The Housing material ages, the plastic becomes brittle or the threads are damaged

In these cases, merely replacing the filter element cannot solve the problem. Timely replacement of the Housing is the only reliable solution.

When Is It Only Necessary To Replace The Fuel Filter?

In the following circumstances, only the filter element needs to be replaced:

• Power decreases under high load
• The service life of the filter element is too long
• Poor oil quality leads to premature clogging of the filter element

• The symptoms disappeared immediately after replacing the filter element

This not only saves maintenance costs but also enables the engine performance to be restored quickly.

Precautions and Maintenance Suggestions

1. Choose high-quality filter elements and housings: Low-quality accessories are prone to premature aging or clogging, which can affect engine performance.

• Regularly inspect the fuel system: especially the service life of the Housing joints, seals and filter elements.

• Keep replacement records: It is convenient to determine the source of future problems.

• Pay attention to safety during operation: The fuel system is a high-pressure system. When replacing it, avoid fuel leakage and contact with fire sources.

Through scientific maintenance, the lifespan of the fuel system can be prolonged, ensuring the long-term stable operation of the engine for 5.9 Cummins.

Conclusion

Correctly determining whether to replace the Fuel Filter or the Housing can not only save maintenance costs but also prevent vehicle problems from recurring. It is generally recommended to start with the filter element inspection first, and then consider the Housing after confirming the problem.

By regular maintenance, using high-quality parts and scientific troubleshooting, you can effectively extend the lifespan of the fuel system, maintain the stable performance of the engine and keep the vehicle in the best condition all the time. If you need Cummins fuel filter related parts, please feel free to contact Longshine.
