How to Change Fuel Filter on 6.7 Cummins?

The 6.7 Cummins diesel engine uses a double fuel filter system that protects the precision parts of the engine from impurities, and changing the fuel filter is an essential maintenance requirement. For those who wish to do it on their own, it is essential to know how to change the fuel filter on 6.7 Cummins engines. The guide will provide the basic information on the importance of the fuel filter, changing the fuel filter, and maintenance tips, enabling anyone, whether a mechanic or an enthusiast, to change the fuel filter with ease.

What Is a Fuel Filter And Why Changing It Matters

Fuel filters are basic yet crucial parts of many diesel engines because they prevent fuel injectors and high-pressure pumps from being clogged with debris and destroyed. This fuel filter features two filter elements: a primary filter (fuel-water separator) and a secondary filter (fine filter), ensuring thorough fuel purification. The primary filter can capture large debris and separate water, while the secondary filter can remove particles as small as 3-5 microns, protecting the engine’s high-precision components.

The 6.7 Cummins fuel filter requires regular replacement because its clogging will lead to decreased engine fuel supply which causes engine performance problems. The fuel filter will accumulate impurities over time, which will lead to engine fuel supply problems that force the engine to operate at increased workload. The engine performance directly suffers from this situation, which then results in expensive replacement costs for both the fuel pump and injectors. The recommended interval for changing the 6.7 Cummins fuel filter stands at 15,000 miles or 12 months, which helps prevent engine problems to maintain smooth engine operation.

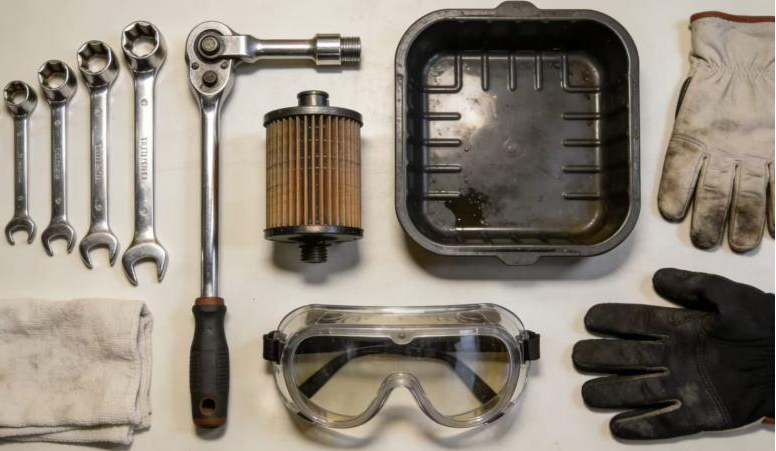

Prepare the Tools And Materials

Before you begin your 6.7 Cummins fuel filter replacement work, you must collect all essential equipment and materials needed for this operation. First, you’ll need a genuine 6.7 Cummins fuel filter—opt for OEM parts like Fleetguard FS43255 (2007-2012 models) or FS53000 (2013+) to guarantee compatibility and performance. Using high-quality filters protects your engine and reduces long-term fuel filter replacement costs.

A socket wrench set, fuel filter wrench, drain pan, clean rags and gloves with protective goggles establish essential equipment for this task. A priming pump becomes necessary when the system does not have this feature in order to remove air from the system after completing the replacement. A bottle of clean diesel should be available for use to lubricate new filter O-rings. The presence of these items will reduce waiting time while they provide materials for a secure and effective fuel filter replacement operation on 6.7 Cummins.

How to Change Fuel Filter on 6.7 Cummins: A Step-by-Step Guide

Replacing fuel filter on 6.7 Cummins is a task that can be finished by yourself. Here is a detailed guide：

Step 1: Safety Preparation

Ensure the engine is off and completely cool to avoid burns. The negative battery terminal needs to be disconnected because it protects against unintentional engine activation. The 6.7 Cummins fuel filter location needs to be identified because 2007-2012 models position their primary filter on the driver-side engine block while 2013+ models place their primary filter on the frame rail and their secondary filter on the engine. The drain pan needs to be positioned under the filter to capture the diesel fuel.

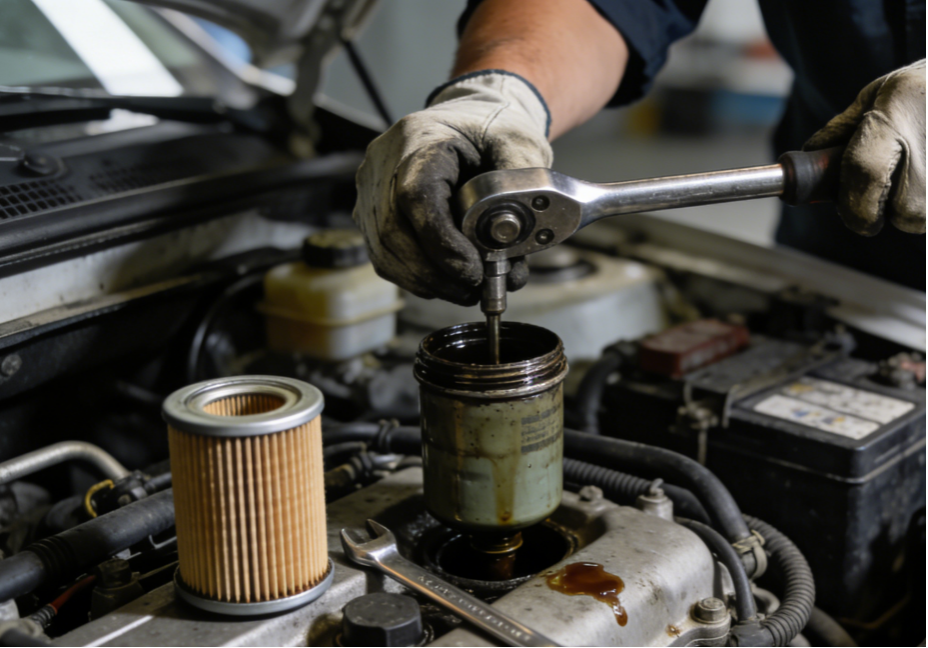

Step 2: Remove the Old Filter

The primary filter (fuel-water separator) needs to be unfastened with a fuel filter wrench which requires turning it in a counterclockwise direction. The filter needs to be turned slowly to decrease pressure which allows diesel fuel to flow into the pan. The old filter needs to be removed after the draining process is finished. The secondary filter requires the same procedure as the first filter because its base needs special handling to prevent damage.

Step 3: Clean the Mounting Base

The filter mounting base needs to be cleaned with a fresh rag which will eliminate all contaminants including dirt and debris and old diesel fuel. The base needs to be examined for cracks or damage because any existing issues require 6.7 Cummins fuel filter housing replacement to stop leaks from occurring.

Step 4: Prepare the New Filter

The new 6.7 Cummins fuel filter requires a clean diesel thin layer which you should apply to the O-rings. The lubrication creates a secure connection which protects the O-ring from damage during the installation process. The secondary filter needs to remain unfilled because pre-filling introduces unfiltered fuel into the system.

Step 5: Install the New Filter

You need to hand tighten the new filter until O-ring contact with the base occurs. You should tighten the connection with a wrench until it reaches ¾ turn while stopping short of total tightening because that risks damaging the O-ring and filter housing.

Step 6: Prime the Fuel System

The fuel pump will damage because air trapped in the system. The priming pump needs to be found on either the filter housing or engine component and you should pump until they encounter resistance. You should repeat three to five times before opening the bleed screw which operates as an air release mechanism. You need to close the screw after diesel flows through the line without producing bubbles. For newer models, turn the ignition key to the “on” position (without starting) 2 to 3 times to activate the system.

Step 7: Inspect for Leaks

The negative battery terminal needs to be reconnected. The engine needs to be started and maintained at idle speed for a duration of two to three minutes. You should inspect all areas near the filter housing and its connectors to detect any leaks. If a leak exists, you must stop the engine and tighten the filter until it is secure. If the leak continues to exist, you must replace either the O-ring or the filter.

Signs That Indicate Fuel Filter Replacement

Engine Performance Issues

This engine has two obvious problems: unstable rotational speed and inability to function properly under heavy load conditions. The engine requires fuel delivery through the filter system because the filter system presently blocks fuel passage to the engine.

Hard Starting in Diesel Engine

The process of ignition requires a certain amount of fuel which a clogged fuel filter prevents from reaching the fuel injectors. The engine requires extended time to start because it takes multiple attempts before it successfully starts the engine after remaining inactive throughout the day. The fuel system suffers from two problems during cold weather because contaminants in the fuel and restricted fuel flow prevent proper operation.

Decreased Fuel Efficiency

A clogged fuel filter forces your engine to work harder, directly reducing fuel economy. You’ll find yourself needing to refuel much more frequently than usual, even when driving the same routes under similar conditions. This unexplained increase in fuel consumption, without a change in driving style or vehicle load, is a classic indicator of a restricted fuel filter.

Reduced Power And Acceleration

The system produces two problems because it shows poor acceleration performance while driving and it provides insufficient power when the user tows a trailer or ascends a hill. The 6.7 Cummins fuel filter becomes completely blocked which prevents it from delivering the required fuel to the engine. The 6.7 Cummins fuel filter needs replacement when your truck experiences power loss problems during acceleration.

Check Engine Light

The check engine light will activate when the 6.7 Cummins fuel filter experiences a malfunction. The computer will detect fuel pressure and flow irregularities and it will use the P0087 code to show that there is a problem with the 6.7 Cummins fuel filter system.

Unusual Engine Noises

The 6.7 Cummins fuel filter has failed when the fuel pump produces knocking or sputtering or whining sounds. Insufficient fuel supply to the injectors leads to these noises which occur during operation. The fuel pump will experience excessive strain when the fuel filter becomes blocked and operators should address these sounds immediately because they could damage the fuel pump and injectors.

Maintenance Tips for Fuel Filter on 6.7 Cummins

The 6.7 Cummins fuel filter needs proper maintenance to achieve maximum operating time and engine protection.

• The system needs replacement after 15,000 miles or 12 months of use according to the recommended replacement schedule which specifies the replacement period. The driving conditions you experience need to determine your maintenance schedule which should be decreased to 10,000 miles for dusty and off-road and harsh driving environments.
• The primary filter needs water drainage every month or whenever the WIF light turns on because water creates rust and injector damage and results in poor combustion.
• The use of high-quality diesel fuel from reputable fuel stations will help decrease fuel contaminants which makes low-quality fuel lead to faster filter clogging and higher chances of fuel filter failure.
• The system requires proper priming after 6.7 Cummins fuel filter replacement to prevent the formation of air bubbles.
• The filter housing and connections need inspection during oil changes because leaks or damage will require immediate repair to prevent expensive 6.7 Cummins fuel filter housing replacement.
• Keep a spare 6.7 Cummins fuel filter on hand for emergencies, especially if you frequently drive long distances.

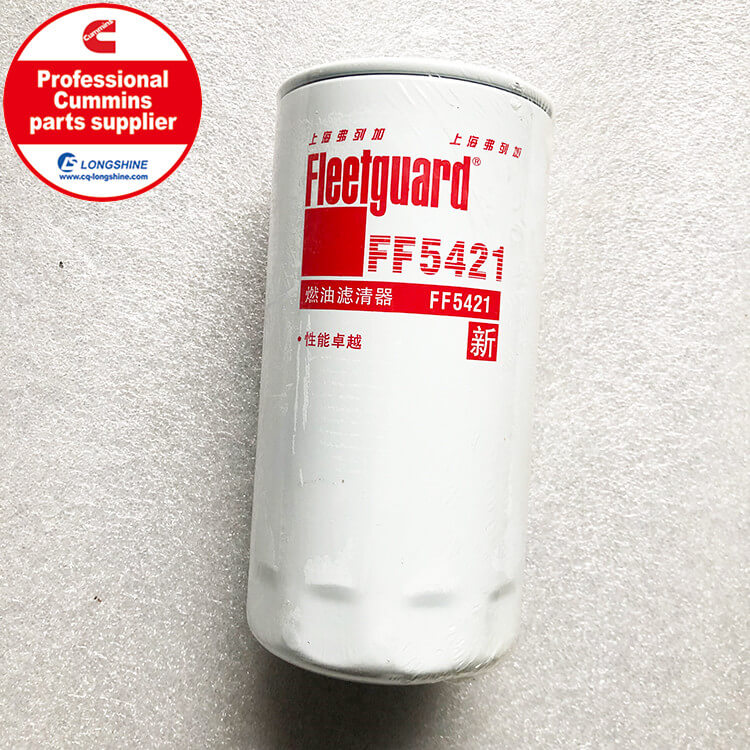

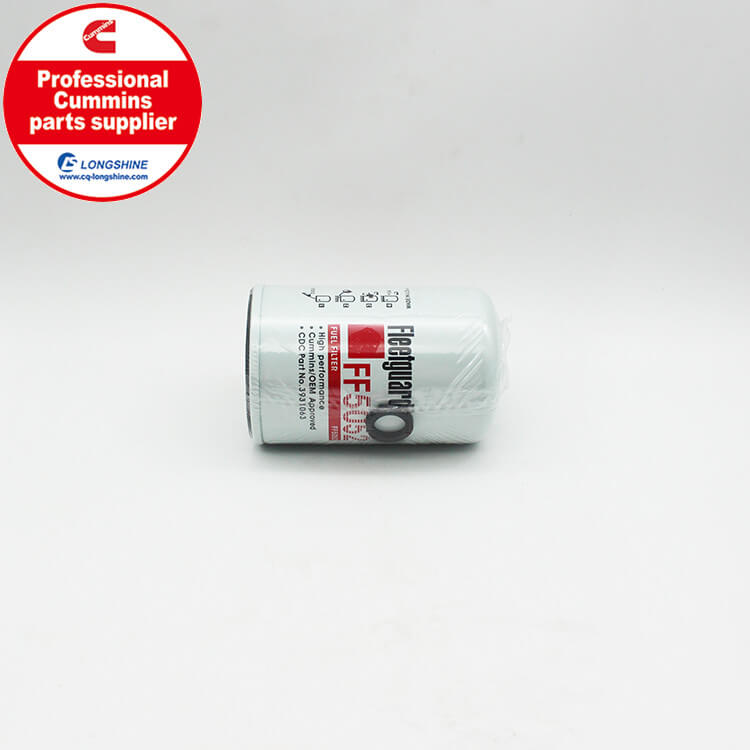

Where to Buy Fuel Filter on 6.7 Cummins?

You can purchase 6.7 Cummins fuel filter at any authorized Cummins dealership, auto parts stores, or online retailers. Online shopping requires customers to exercise caution because some retailers offer fake products. The car manual or a mechanic should be consulted when you need to find the correct 6.7 Cummins fuel filter because using the wrong filter will harm your engine.

When purchasing the 6.7 model Cummins fuel filter, we recommend that you choose genuine factory parts. Longshine is Cummins authorized PT fuel system parts supplier of CCEC which provides complete Cummins PT fuel system parts and assemblies that meet genuine Cummins standards at affordable prices.

Final Thoughts

The fuel filter replacement process for your 6.7 Cummins engine requires simple steps that accomplish an essential maintenance procedure which helps maintain engine performance and extends engine lifespan. The scheduled replacement times need to be followed together with correct system priming execution while operators must remain vigilant for equipment malfunction signals which show system blockages. The combination of proper tools and expertise with Longshine parts enables DIY maintenance to reduce expenses while extending the operational efficiency of your 6.7 Cummins throughout all its driving distances.
