Step-By-Step Guide To How To Clean DEF Injector 6.7 Cummins

6.7 Cummins engines enjoy a high reputation in the pickup and heavy vehicle sectors and are widely adopted for their powerful performance and reliable performance. However, as the mileage increases, the maintenance problems of the fuel injection system gradually emerge. Many car owners encounter situations such as DEF fuel injectors crystallizing and getting clogged, or excessive carbon deposits on the fuel injectors. If these problems are not dealt with in time, they will not only affect the engine performance, but also may lead to increased fuel consumption, non-compliance with emission standards and even engine failure.

This article will systematically introduce the functions of DEF fuel injectors, common fault manifestations, cleaning and disassembly methods, and also explain the maintenance points of Cummins fuel injectors, helping car owners better maintain their engines in daily use.

The Function And Common Faults Of DEF Fuel Injectors

The main function of the DEF (Diesel exhaust fluid) injector is to precisely inject urea liquid into the SCR system (Selective Catalytic Reduction Unit), where it reacts with the exhaust gas to reduce nitrogen oxide emissions. This process is crucial for meeting emission standards.

However, the chemical properties of DEF liquid determine that it is prone to crystallization in high-temperature environments. Over time, the nozzle may become clogged. Common manifestations of faults include:

1. The engine fault light frequently comes on.
2. The vehicle’s fuel consumption increases while its power decreases.
3. The exhaust gas emission test failed.
4. In severe cases, the engine may enter a “protection mode” to limit power output.

These signs often indicate that DEF injectors need to be cleaned or even replaced.

How To Clean DEF Injector 6.7 Cummins?

If the problem is in its early stage and the fuel injector blockage is not severe, cleaning usually can restore normal operation. The operation steps are as follows:

1. Preparatory work

• Turn off the engine and wait for the system to cool down to avoid scalding.
• Put on protective gloves and goggles.
• Prepare a wrench, cleaning solution and a soft cloth.

2. Check the condition of the nozzle

• Disassemble the electrical interface of the fuel injector.
• Observe the nozzle opening with the naked eye to see if there are any obvious crystals or deposits.

3. Cleaning methods

• Carefully remove the fuel injector.
• Soak in warm water or a dedicated cleaning solution to soften and dissolve the crystals.
• Use a soft-bristled brush or cloth to gently wipe. Do not use metal tools to scrape off.
• After cleaning, check whether the nozzle is unobstructed.

4. Reinstall and test

• Install the fuel injector and electrical interface as per the original steps.
• Start the engine and confirm whether the fault light is off and whether the operation has returned to normal.

Regular cleaning can effectively extend the service life of DEF injectors and prevent discharge problems caused by clogging.

How To Remove a DEF Fuel Injector?

In some cases, merely cleaning is not enough; the fuel injectors must be completely removed for inspection or even replacement. The steps include:

1. Disconnect the electrical connection

• Locate the DEF fuel injector position.
• Gently unplug the electrical interface to avoid damaging the plug.

2. Disassemble the fasteners

• Use a wrench to unscrew the fuel injector fixing bolts.
• After removing the bolt, be careful to loosen the fuel injector body.

3. Remove the fuel injector

• Gently pull out the fuel injector, avoiding excessive force.
• Check whether there is any crystalline deposition at the interface.

4. Check the sealing ring

• Check whether the sealing rings around the fuel injectors are aged or cracked.
• Replace the new sealing ring when necessary to prevent leakage after installation.

This remove method is not complicated, but it requires meticulous operation. If the car owner is not sure whether they can complete it, it is best to seek the help of a professional technician.

Cleaning And Maintenance Of Fuel Injectors

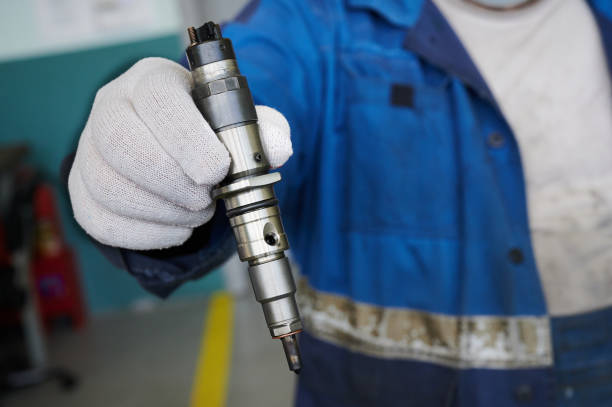

In addition to DEF injectors, 6.7 Cummins fuel injectors also require regular maintenance. Their main problem is the deposition of carbon deposits, which will affect the combustion efficiency over time.

Common processing methods include:

• Using fuel additives: Adding cleaning agents to the fuel can reduce the deposits in the nozzles to a certain extent and is suitable for mild clogging.
• Ultrasonic deep cleaning: Remove the fuel injector and place it in an ultrasonic cleaner. The internal carbon deposits are removed through high-frequency vibration.
• Check the spray holes: If the spray holes are severely worn or clogged, the cleaning effect is limited. At this time, replacement is a more reasonable choice.

In addition, car owners should try to choose high-quality fuel during daily use to prevent impurities from entering the system and reduce the wear and clogging of fuel injectors from the source.

Common Mistakes And Precautions

When cleaning or removing fuel injectors, some common misunderstandings need to be avoided:

• Incorrect use of tools: Scraping the crystals hard with metal tools can scratch the nozzle and affect the spraying accuracy.
• Improper use of cleaning solutions: Strong corrosive chemicals can damage parts and cause secondary malfunctions.
• Ignoring early faults: If the engine lights frequently come on but are not dealt with promptly, the problem will further deteriorate and increase maintenance costs.

The correct approach is to regularly inspect the DEF system, use qualified DEF solutions and fuel, and take cleaning or maintenance measures at an early stage.

Final Words

Whether it’s DEF injectors or fuel injectors, regular cleaning and maintenance are key to maintaining 6.7 Cummins of engine performance. By scientific methods, the fuel injectors can be kept unobstructed to ensure the efficient operation of the combustion and emission systems.

In daily use, if car owners can develop the habit of regular inspection and timely cleaning, they can not only avoid high maintenance costs but also greatly extend the service life of the engine. This is particularly important for users who rely on vehicles for long-distance transportation or heavy-load operations.

In other words, although the fuel injector is just a small component in the engine, its condition directly affects the overall performance of the vehicle. Rather than waiting until the problem becomes serious to fix it, it’s better to put more effort into maintenance on a regular basis to keep the 6.7 Cummins in the best condition all the time.

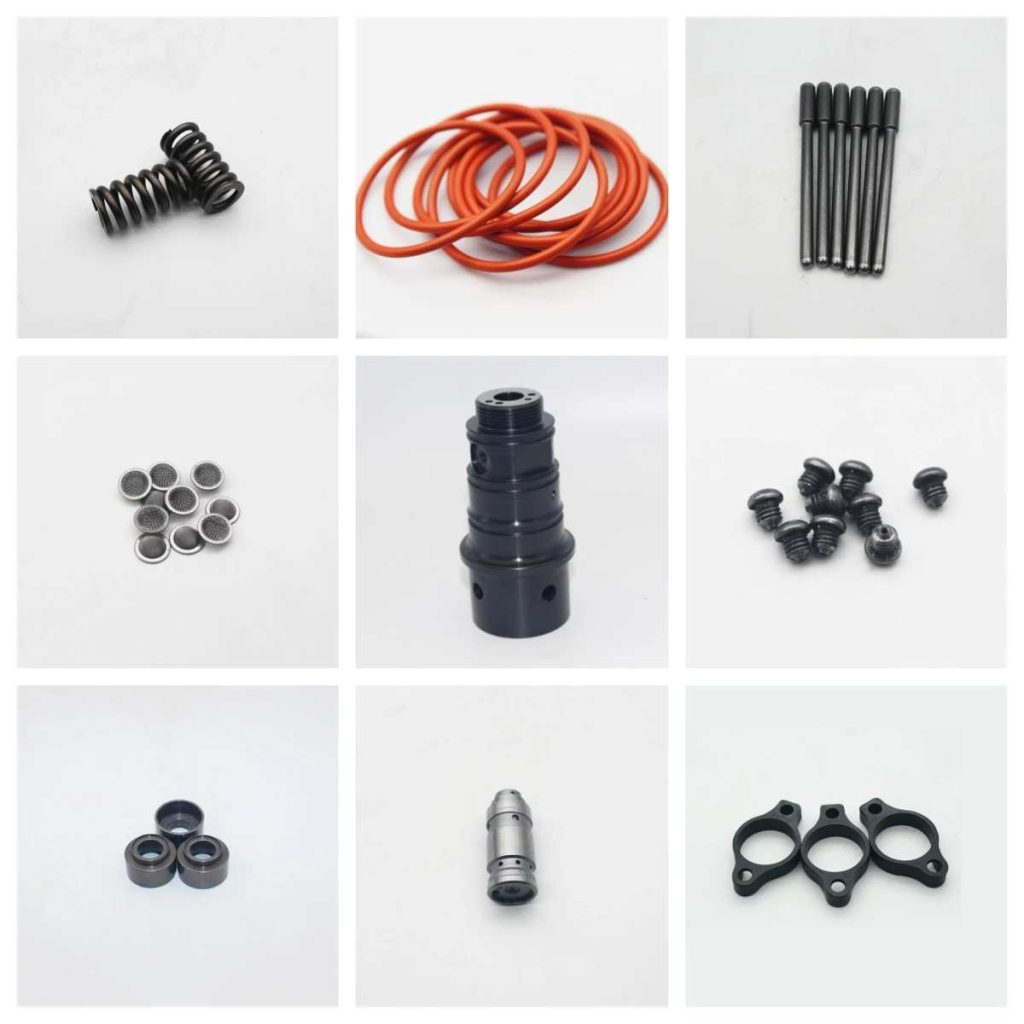

Longshine has been focusing on Cummins parts related products and solutions to provide users with trustworthy support.
