How Many Injectors Are in A 5.9 Cummins?

As a representative of classic truck engines, the 5.9 Cummins diesel engine is very popular among its users for its high power and durability. The major question that bothers many car owners and repairmen is the one below: How many injectors are in a 5.9 Cummins? The following article, we will provide a comprehensive answer to this question, as well as introduce some information on fuel injectors and maintenance tips.

Part 1. What is 5.9 Cummins Engine?

5.9 Cummins diesel engines have gained a prized reputation across heavy-duty trucks, commercial trucks and construction machinery since entering the market in the late 1980s. Understood for generating high torque with good durability and reliability; their popularity among heavy equipment owners cannot be overstated.

Since its inception, the 5.9 Cummins has gone through many technical updates to respond to evolving performance and emissions specifications. The engine has been produced in a variety of forms ranging from early mechanical injection pump designs (VE/P-pump) to modern incarnations featuring electronic fuel injection technology (e.g. ISB series with common rail injection).

Due to its rugged build, cast-iron block, and durable parts, the 5.9 Cummins continues to be popular among diesel enthusiasts, fleet managers, mechanics, and mechanics because of its reliability and versatility.

Part 2. How Many Injectors in a 5.9 Cummins?

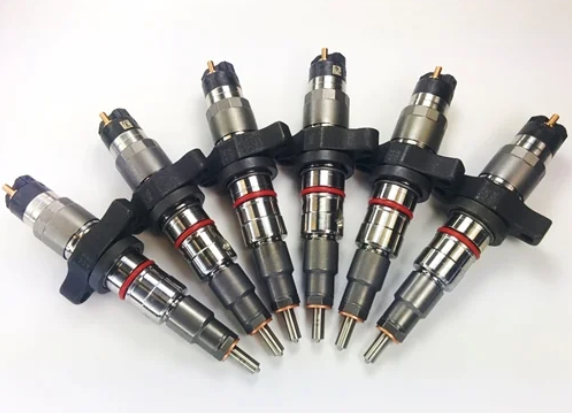

Quite simply, the 5.9 Cummins motor features six fuel injectors. The reason for this is obvious and designed around the configuration of the engine:

The 5.9 Cummins engine is an inline-6 engine

There are six cylinders to which one injector needs to be supplied in order to spray fuel directly into its combustion chamber

This implies six injectors equal to cylinders.

All the injectors are critical parts of the combustion cycle of the engine. They atomize the diesel fuel and spray it into the combustion chamber precisely in the correct amount and precisely at the right time. This optimizes combustion, power, and fuel efficiency.

The injectors are attached in a position where every injector supplies a separate cylinder directly. In older mechanical fuel injection engines (like the old 5.9L engines), the injectors are driven by a mechanical fuel pump operated at high pressure, while in newer engines with electronic fuel injection (like the ISB engines), injectors are electrically operated to provide improved fuel distribution for better emissions, efficiency, and driving performance.

Efficient performance of the injectors is what provides smooth engine operation, less smoke, and steady performance, especially under heavy loads, where the 5.9 Cummins outshines.

Part 3. Injector Configuration in Different 5.9 Cummins Models

Although the quantity of injectors in the 5.9 Cummins engine has always remained six, indicating its six-cylinder engine configuration, the fuel injection system type and injectors used have changed enormously over time.

Here are the differences in detail based on years of production and engine models:

1. Early Mechanical Injection Systems (Pre-1998)

During the early series of the 5.9 Cummins, specifically those used in Dodge Ram trucks between 1989 and 1998, the engine used mechanical injection systems such as the VE rotary pump or the more powerful P7100 (P-pump). These used mechanically actuated injectors, where the fuel was pressurized through the injection pump and delivered through high-pressure lines to each injector.

• Injector type: Mechanical
• Injection timing: Timed and metered through the injection pump
• Advantages: Simple, reliable, less maintenance-required

2. Electronically Controlled Injection Systems (1998.5 and Later)

Cummins first introduced their ISB (Interact System B) 5.9 engine, an innovative fuel system advancement, in the late 1990s. These engines feature electronic fuel injection using VP44 pumps before moving on to high-pressure common rail (HPCR) systems.

• Piezoelectric or electronically controlled solenoid injectors.
• Injection control: For accurate timing and fuel quantity management, an ECU (Engine Control Unit) controls infusion with precise timing and amount control.
• Benefits of improved emissions, fuel atomization, efficiency and smoother operation

3. Common Rail Injection for 2003-2007 Models

Last generation 5.9 Cummins engines from 2003-2007 utilized Bosch common rail injection as the most advanced fuel system available to this engine family. Each injector could inject multiple times per combustion cycle – pre-injection, main injection, and post-injection; making them quieter running and cleaner exhaust.

• Injector type: High-pressure common rail (electronic).
• Features of Multi-event Injection are Multi-event injection, high precision, lower emissions.

Even with advances in technology, all 5.9 Cummins engines still utilize six injectors per cylinder to ensure accurate and efficient fuel delivery to each combustion chamber. This design ensures the legendary durability and performance of this engine remain constant across its various versions.

Part 4. How Longshine Support You as a Professional Cummins Parts Supplier?

Being a Cummins parts supplier, Longshine are committed to providing quality Cummins fuel injectors and other parts to meet your maintenance and performance needs. Our products are thoroughly inspected for quality to provide durable engine performance and long-term durability.

With years of industry experience, we offer customized parts solutions that meet your specific needs, whether you need standard replacement parts or high-performance upgrade parts, we have the right options for your buying requirements. Additionally, we guarantee fast shipping and incorporated after-sales service to provide assurance that your equipment is in top conditions at all times.

Selecting us will have you benefit from:

• Authentic Cummins injectors that are long-lasting and dependable
• Affordable prices and flexible purchasing plans
• Expert technical support and post-sales maintenance

Feel free to get back to us for additional details, we can help you maximize the performance of your 5.9 Cummins engine.

Part 5. Tips for Maintaining and Replacing Injectors on 5.9 Cummins

Fuel injectors are important engine parts and, eventually, can clog, wear out, or fail internally. Such problems will result in all sorts of difficulties, ranging from rough idling to poor acceleration, excessive fuel consumption, or even engine starting issues.

To have the best engine performance, car owners are advised to inspect the health of the injectors periodically, especially in case of unusual symptoms. Unusual symptoms like engine misfire, heavy smoking, or loss of power are indicative that one or more of the injectors are faulty and require attention.

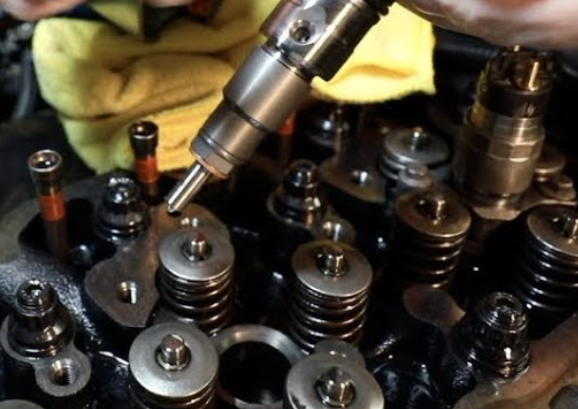

When replacing the injectors on 5.9 Cummins, the following should be done:

Select six compatible injectors specifically designed for the correct model year and configuration of the 5.9 Cummins engine.

Ensure that the injectors are of OEM quality to balance the fuel system and engine reliability

On high-mileage engines, it is advisable to replace all six injectors at once to avoid inconsistent fuel flow and potential performance imbalance

Regular upkeep and early injector replacement not only lengthen the life span of your 5.9 Cummins engine but also cause it to operate more economically and reliably under any conditions.

Frequently Asked Questions about Injectors in 5.9 Cummins

1. How much does it cost to replace injectors on a 5.9 Cummins?

Replacing all six of the injectors on a 5.9 Cummins usually costs $1,500 to $3,000 in parts and labor. The price varies based on whether you use OEM or aftermarket injectors and the local labor rate.

2. How many injectors does my Cummins engine have?

Most Cummins diesel engines, such as the 5.9L, are inline 6-cylinder engines, which means that they have six fuel injectors, one for each cylinder. But always address according to the specific model given.

3. How can I tell if I have dirty injectors in my 5.9 Cummins?

Common symptoms of dirty injectors are rough idling, hard starting, excessive smoke, loss of power, and excessive fuel consumption. You may also notice engine misfires or fuel dilution in oil.

4. How long do 5.9 Cummins injectors last?

5.9 Cummins injectors typically last 100,000 to 150,000 miles, based on driving conditions, maintenance schedules, and fuel quality. Fuel system service will extend their life.

Wrap Up

In short, the 5.9 Cummins engine is equipped with 6 fuel injectors, as many as the cylinders. It is such a convenient design that car owners and mechanics can more easily maintain the engine and make it live longer.

In case you are in need of quality 5.9 Cummins injectors or any other parts, please feel free to contact Longshine. We are more than happy to provide you with professional advice and quality products.
