How to Replace Injectors on a 5.9 Cummins?

At some point in the life of a 5.9 Cummins engine, the fuel injectors become tired enough to spoil the engine’s rhythm. Swapping them out keeps power output healthy, nudges mileage back toward factory numbers, and curbs the risk of worse trouble down the line.

Displaced vibration or lumpy idle often signals that the nozzles have lost their edge, and tackling the job yourself limits both workshop bills and the stress of a crankcase failure. Proper preparation, a clear sequence of assembly steps, and a short list of reliable parts suppliers stand as the practical armor against mistakes.

When Your 5.9 Cummins Injectors Need Replacement

The fuel-injection system of a heavy-duty diesel engine often revolves around the 5.9 Cummins injector set, which atomizes every droplet of diesel as it enters the cylinder. Pistons, rings, valve springs-even injectors-lose their edge once metallurgy begins to suffer, so the nozzle tips are seldom spared. Deferred repair work can spiral into an expensive tear-down, so watch for symptoms that hint the diesel heart is faltering.

1. Hard Starting and No-Start Conditions

Worn nozzles can ruin the spray cone and the total quantity delivered in a heartbeat. Owners sometimes face extra revolutions of the starter motor on chilly mornings; other times, the ring gear will simply whistle back without a bang because none of the cylinders have received useful fuel. A glance under the hood may reveal nothing, yet a quick flow test usually settles the question.

2. Rough Idling and Misfires

Fuel metering that wanders from cylinder to cylinder ruins that sharp diesel rap most idling engines should emit. Mechanics often joke they chase vibrations rather than follow the truck, because the rough temperament vanishes once the tach climbs past a thousand. Having the engine strapped to a portable scan tool while parked can reveal a consistent misfire counter that disappears on the highway.

3. Excessive Smoke and Emissions

A compromised diesel nozzle sometimes fails to atomize fuel evenly, so unburned or partly burned droplets exit the cylinder as black or gray smoke. Mechanics often note charcoal dust on the tailpipe or a parked vehicle’s bumper when this condition has lingered. For drivers of the 5.9 Cummins platform, chronic haze appearing during routine acceleration marks a serious injector fault.

4. Loss of Power and Fuel Economy

An injector that has begun to slip seldom delivers the right pulse in either volume or timing, causing a drop in cylinder pressure and thermal efficiency. The truck will feel heavy off the line and files miles-per-gallon figures away faster than the owner remembers. Anyone posting fuel receipts every few days should pause- that habit usually pockets the telltale scent of wasted diesel.

5. Contaminated Engine Oil

Fuel migrating past a worn nozzle seat lands indiscriminately in the crankcase, thinning the oil and robbing bearings of the cushioning film they depend on. Savvy owners sniff the new fill for an acrid diesel odor or search the dipstick for soap-like streaks before the canister is tossed. Even small amounts of dilution, left unchecked, can hasten the demise of rods, mains, and gallery-fed components.

When the engine begins to hesitate at ignition, shakes unevenly while stationary, clouds the atmosphere with dark smoke, can no longer muster its usual pull, or allows fuel to creep into the crankcase, the injector stack demands immediate attention. A swift diagnostic call and, if warranted, the exchange of the nozzle unit will not only revive the familiar roar of the 5.9 Cummins but also guard pistons and bearings from additional wear, thereby preserving the powerplant for many more miles of service.

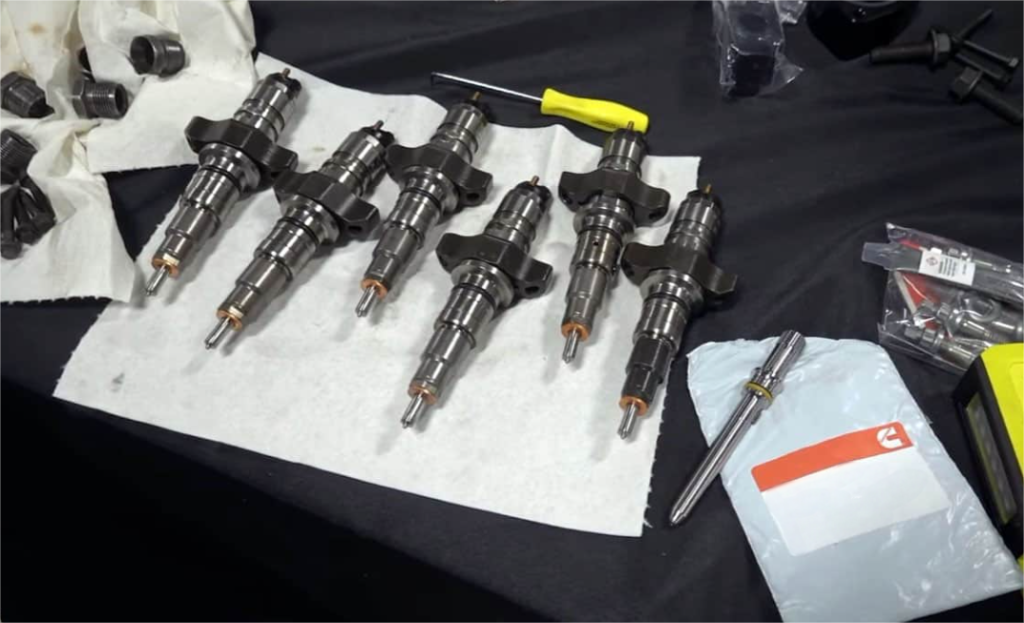

Preparing Tips for Cummins Injector Replacement

Before wrenching on a 5.9-Cummins injector, a few quiet moments spent gathering supplies can pay enormous dividends. Haphazard preparation nearly always leads to nicked seals, misordered parts, or worse yet, a contaminated fuel gallery. Whether the task unfolds under a shop roof or in a home bay, the same principle holds: readiness drives efficiency.

• Strike a balance between quality tools and everyday shop conveniences. A certified torque wrench paired with a compact-socket set sits atop the list, followed closely by a dedicated injector puller or slide hammer. Fuel-line-disconnect gadgets streamline the plumbing, while clean rags, gloves, and proper eyewear protect both skin and sight. Fresh seals, O-rings, and hold-down fasteners belong in the cart, as does diesel-rated anti-seize or assembly grease to ensure everything turns smoothly long after the job is done.
• Safety always opens the playbook. Detach both negative battery leads before loosening wires; an inadvertent spark beneath the hood can be both damaging and loud. A squirt of degreaser-rinsed with compressed air-keeps loose grime from raining into the injector bores the moment the rail is unfastened.
• Precision during tear-down matters almost as much as torque during re-assembly. Mark each fuel line and harness with a numbered tag or colored chalk so no connector wanders into the wrong home. Stow pulled parts in the same order they occupied the engine, placing cylinder-one hardware beside cylinder-one space and onward, otherwise the sequence gets hazy fast.

Thorough preparation is often as consequential as the act of component replacement. Careful organization ahead of time frequently streamlines the installation of new 5.9-Cummins fuel injectors and enhances the overall reliability of the job.

Procedures to Replace Injectors on a 5.9 Cummins

Knowing how to replace injectors on a 5.9 Cummins engine is essential for any diesel owner looking to maintain optimal performance. While it’s a job that requires mechanical precision, with the right tools and careful attention to detail, it can be done at home or in a well-equipped shop. Below is a step-by-step guide to replacing your 5.9 Cummins injectors.

1. Preparation and Safety

To lock out any stray voltage, unhook both negative battery cables and stash them well out of reach. A quick sweep of the engine’s top surface keeps loose dust from drifting into the fuel gallery once the lines are cracked open.

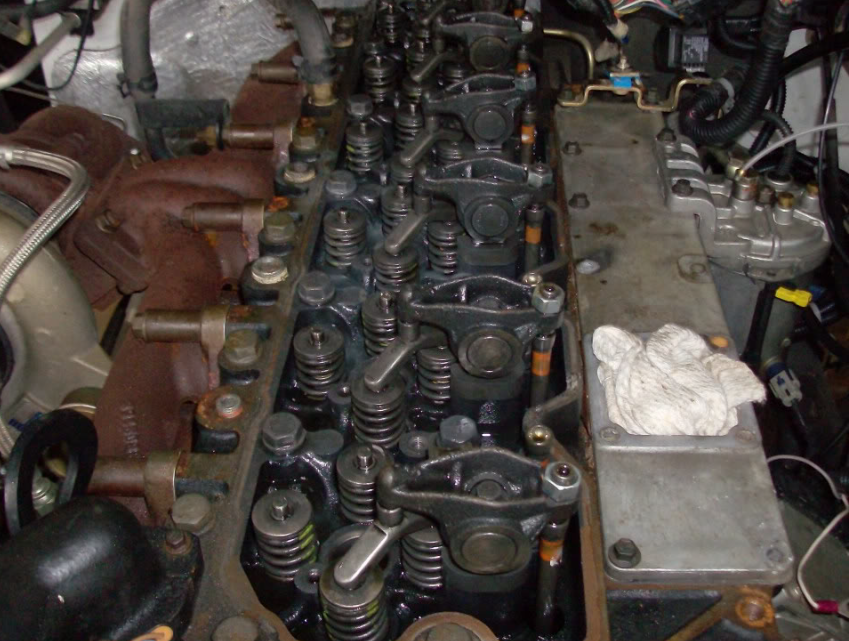

2. Remove Engine Components

With the valves covered, the injector wiring harness finally comes into view. Snag the harness clips, set them aside, and work loose the rocker arms and push rods; stacking them in the original order saves a headache later. A thin-walled fuel-line wrench allows access to the high-pressure tubes, and the smaller return lines follow suit without much fuss.

3. Extract Old Injectors

Resort to a specialty injector puller or employ a light slide hammer calibrated for the Cummins 5.9 engine. Carbon deposits can bond the nozzle to the bowl, so stamina often outlasts brute force. Upon withdrawal, scan the bore for loose particles, rust, or fragments of the original seal. A quick clean-up preserves the integrity of the new assembly.

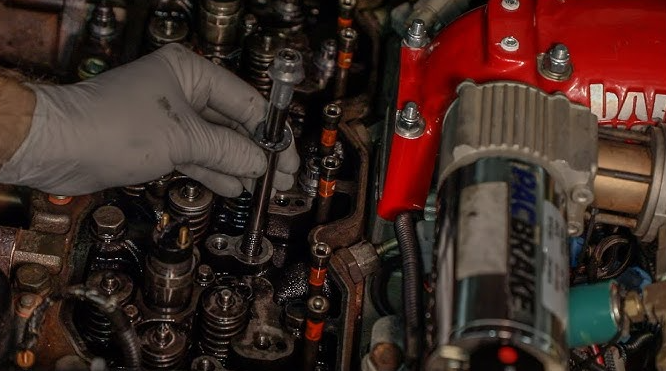

4. Install New 5.9 Cummins Injectors

Choose a clean engine oil or a diesel-compatible grease and coat the fresh O-rings before insertion. Align the injector shaft with its bore and push down until a positive stop is felt; distortion is common when haste overshadows care. Lock the unit with its hold-down bolt, then tighten to specification-usually near 89 inch-pounds, though the service manual will have the final word.

5. Reassembly

Return the pushrods and rocker arms to their original sequence so oil distribution remains uniform. Torque the rocker fasteners according to Cummins-documented values to avert binding. Reattach the high-pressure fuel lines and snap the injector harness connectors into place. Cap the assembly by replacing the valve cover, then conduct a last visual and manual check of all nuts and clips.

6. Priming and Initial Commencement of Operation

To pre-pressurize the fuel system, briefly rotate the ignition key to the ON position two or three times without engaging the starter. Engage the starter once the system responds; allow the engine to idle while observing for fuel seepage, irregular sounds, or extraneous smoke. Consistent monitoring during this brief period will confirm that combustion is stable and the engine pulls evenly across its operating range.

Injector replacement on a 5.9 Cummins engine is a labor-intensive procedure that rewards methodical execution. Adhering to the outlined priming and start-up protocol restores reliable, particulate-free fuel delivery.

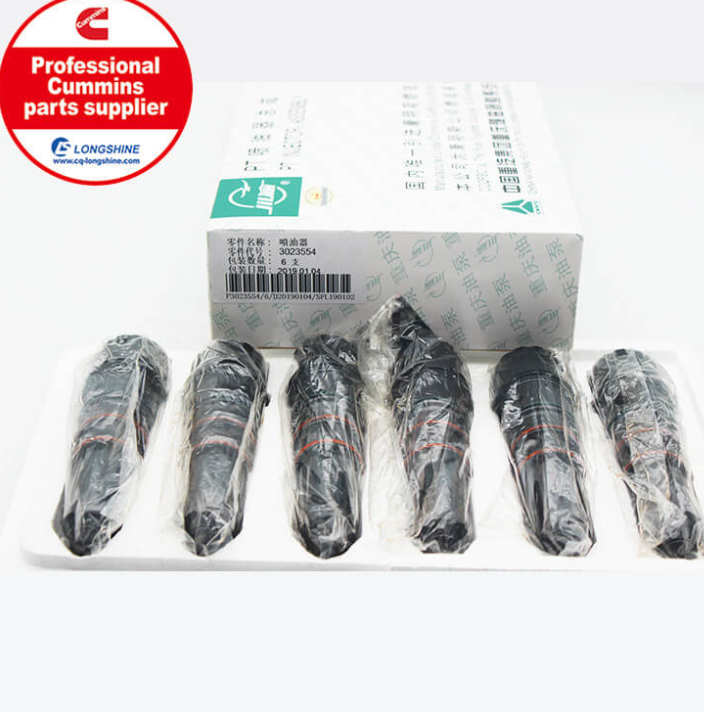

Where to Buy New 5.9 Cummins Injectors?

When the time comes to swap the injectors on a 5.9 Cummins engine, selecting a trustworthy source can make all the difference in performance and durability. Below are recommended outlets for high-quality fuel injectors.

• Authorized Cummins dealers. For factory-original parts, shop directly with Cummins or with approved distributors such as Longshine, well-regarded for genuine Cummins components.
• Reputable diesel specialty stores Outlets like Thoroughbred Diesel and XDP, carry leading aftermarket and remanufactured injectors that meet strict quality standards.
• Online marketplaces Amazon and eBay may offer convenience, yet always check seller ratings and choose respected names such as Bosch or BD Diesel.
• Local diesel repair shops. Many independent technicians sell and install injectors on-site, assuring correct fit and immediate troubleshooting if issues arise.

For absolute reliability, Longshine stands out as an authorized Cummins partner, providing genuine 5.9 injectors backed by warranty. Whether you seek OEM replacements or upgraded performance parts, purchasing from a certified supplier keeps your engine running smoothly for countless miles.
