Product Description

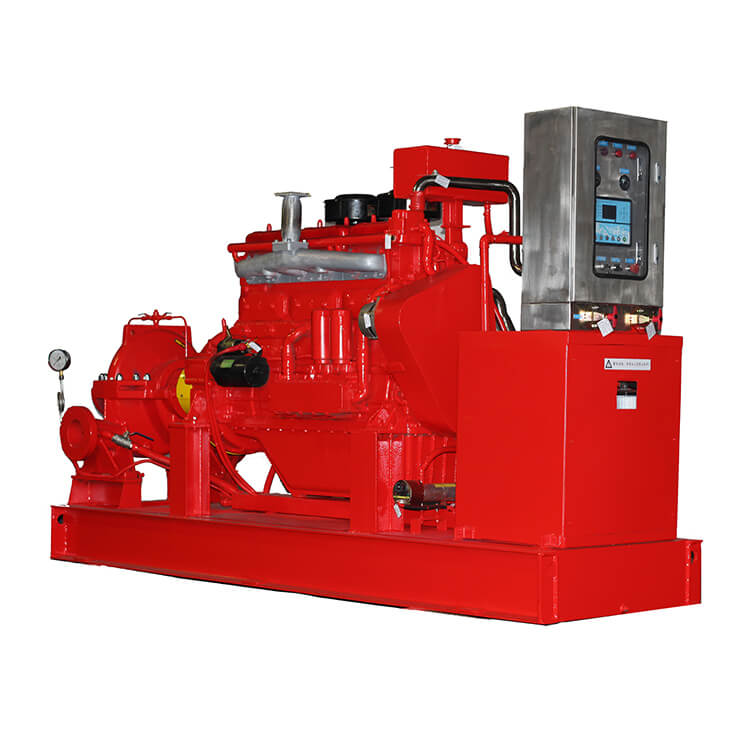

LSDS4.2/104.4 Centrifugal Water Pump Set is equipped with the reliable Cummins 6BT5.9-P160 engine, delivering 115 kW at 1800 rpm for steady and efficient operation. This model excels in providing a substantial flow rate of 104.4 liters per second (375.8 m³/h) combined with a head lift of 42 meters, making it a versatile solution for industrial water supply, irrigation systems, and municipal water transfer projects.
Designed with operational efficiency in mind, the pump features a moderate NPSH value of 2.1 meters to reduce cavitation risk and ensure consistent performance. Its robust yet compact build allows for straightforward installation and maintenance, meeting the demands of medium-scale water pumping applications without sacrificing reliability.
Main Features
- Reliable Cummins 6BT5.9-P160 Engine – Offers a powerful 115 kW output for dependable, long-term operation.
- High Flow Rate for Versatile Use – Delivers 104.4 L/s, supporting efficient water transfer in irrigation, industrial, and municipal settings.
- Balanced Head Performance – Generates 42 meters of head, suitable for moderate elevation and distance requirements.
- Compact and Durable Design – Dimensions and weight (2560×820×1625 mm, 2150 kg) optimized for easy installation and field service.
- Dual Speed Capability – Operates effectively at 1480 and 1800 rpm, adapting to different system demands.
Generator Specification
| Water Pump Model | LSDS4.2/104.4 |
| Rated speed | 1480/1800 rpm |
| Flow | 104.4L/s375.8m³/h |
| Head Lift | 42 m |
| Power | 75kW |
| NPSH | 2.1 |
| Length(mm) | 2560 |
| Width(mm) | 820 |
| Height(mm) | 1625 |
| Net Weight(kg) | 2150 |
| Engine Model | 4BTA3.9-P160 |
| Engine Power | 115kW |
| Engine Speed | 1800RPM |
Single Stage Double Suction Centrifugal Water Pump Set List
| Water Pump Model | Flow | Head Lift | Rated speed | Power | NPSH | |
| m³/h | L/s | m | rpm | kW | L/h | |
| LSDS2.2/43.8 | 157.5 | 43.8 | 22.5 | 1480/1800 | 15 | 2.6 |
| LSDS2.6/26.3 | 94.5 | 26.3 | 26.2 | 1480/1800 | 15 | 2.6 |
| LSDS2.6/47.9 | 172.6 | 47.9 | 26 | 1480/1800 | 18.5 | 2.6 |
| LSDS3.4/23.6 | 65 | 23.6 | 34 | 1480/1800 | 18.5 | 2.5 |
| LSDS2.6/58.8 | 211.7 | 58.8 | 26.8 | 1480/1800 | 22 | 2.6 |
| LSDS4.4/25.5 | 91.8 | 25.5 | 44 | 1480/1800 | 30 | 2.5 |
| LSDS5.1/52.5 | 189 | 52.5 | 51 | 1480/1800 | 45 | 2.5 |
| LSDS4.2/104.4 | 375.8 | 104.4 | 42 | 1480/1800 | 75 | 2.1 |
| LSDS4.6/ 87 | 313.2 | 87 | 46.2 | 1480/1800 | 75 | 2.1 |
| LSDS2.0/453.6 | 1633 | 453.6 | 20 | 1480/1800 | 160 | 5.2 |
| LSDS2.8/492 | 1771 | 492 | 28 | 1480/1800 | 200 | 5.2 |
| LSDS1.9/ 1124 | 4046 | 1124 | 19 | 980/1800 | 250 | 6 |
| LSDS3.8/525.6 | 1892 | 525.6 | 38 | 1480/1800 | 280 | 5.2 |
| LSDS9.3/384.6 | 1384.8 | 384.6 | 93 | 1480/1800 | 450 | 3.8 |
| LSDS4.2/840 | 3024 | 840 | 42 | 980/1800 | 500 | 5.8 |
| LSDS3.6/1230 | 4420 | 1230 | 36 | 980/1800 | 560 | 7.8 |
| LSDS3.0/1650 | 5940 | 1650 | 30 | 1480/1800 | 630 | 7.8 |
| LSDS12.3/578.3 | 2082 | 578.3 | 123 | 1480/1800 | 900 | 3.5 |
| LSDS16.0/510 | 1836 | 510 | 160 | 1480/1800 | 1120 | 3.5 |
| LSDS9.0/1110 | 3996 | 1110 | 90.4 | 980/1800 | 1400 | 6.9 |
