Detailed Product Information
Product Description

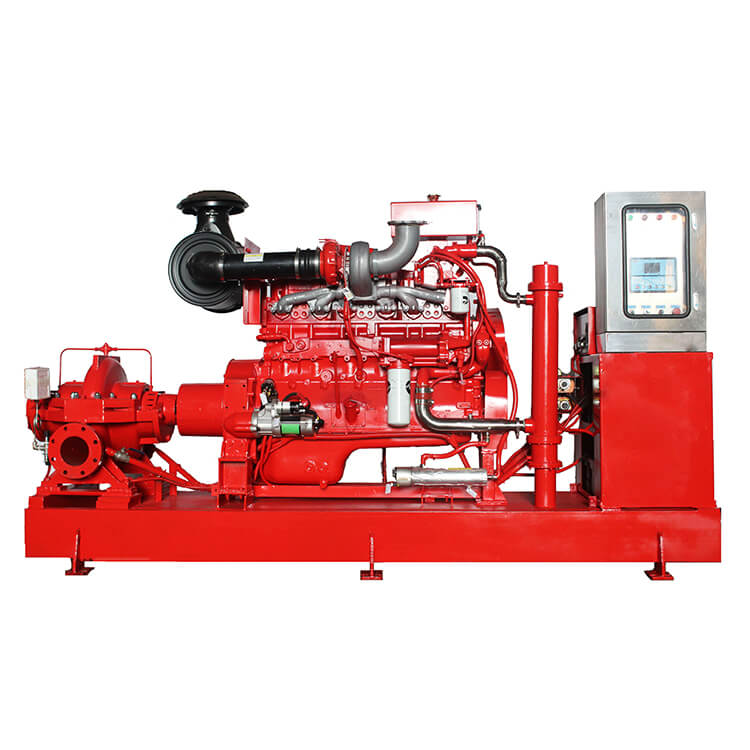

LSDS2.8/492 Single-Stage Double Suction Centrifugal Pump, driven by the Cummins NT855-P360 diesel engine, is built to handle continuous mid-to-high flow demands with stable pressure and exceptional hydraulic efficiency. Delivering 192 L/s (1771 m³/h) at a 28-meter head, this pump is engineered for fire protection systems, industrial water supply, or fixed firefighting infrastructure in oil terminals, energy plants, or logistics zones.
Its double-suction, single-stage design ensures balanced axial loads, smoother flow, and extended bearing life, making it ideal for long-term operations in critical settings. With a Cummins-powered 200kW output, the unit offers a high-performing balance between energy input and water delivery efficiency.
Main Features
- Double-Suction, Single-Stage Design – Delivers superior hydraulic efficiency, reduces axial load, increases service life, and operational smoothness.
- Stable Mid-to-High Flow Performance – Handles 192 L/s (1771 m³/h) at 28 meters head, ideal for medium- to large-scale fire suppression systems or industrial water delivery.
- Powered by Cummins NT855-P360 – Reliable 269kW engine running at 1800 RPM, optimized for diesel autonomy and long working hours in remote or unmanned sites.
- Moderate NPSH Requirement – Ensures smooth priming and suction under varied supply conditions without cavitation.
- Efficient Power Utilization – With a 200kW pump power rating, this unit optimizes energy-to-flow ratio, keeping operational costs in check over long use cycles.
Generator Specification
Water Pump Model | LSDS2.8/492 |
Rated speed | 1480/1800 rpm |
Flow | 192L/s1771m³/h |
Head Lift | 28 m |
Power | 200kW |
NPSH | 5.2 |
Length(mm) | 3200 |
Width(mm) | 1200 |
Height(mm) | 2550 |
Net Weight(kg) | 3400 |
Engine Model | NTA855-P360 |
Engine Power | 269kW |
Engine Speed | 1800RPM |
Single Stage End Suction Centrifugal Water Pump Set List
Water Pump Model | LSDS2.8/492 |
Rated speed | 1480/1800 rpm |
Flow | 192L/s1771m³/h |
Head Lift | 28 m |
Power | 200kW |
NPSH | 5.2 |
Length(mm) | 3200 |
Width(mm) | 1200 |
Height(mm) | 2550 |
Net Weight(kg) | 3400 |
Engine Model | NTA855-P360 |
Engine Power | 269kW |
Engine Speed | 1800RPM |
