Detailed Product Information
Product Description

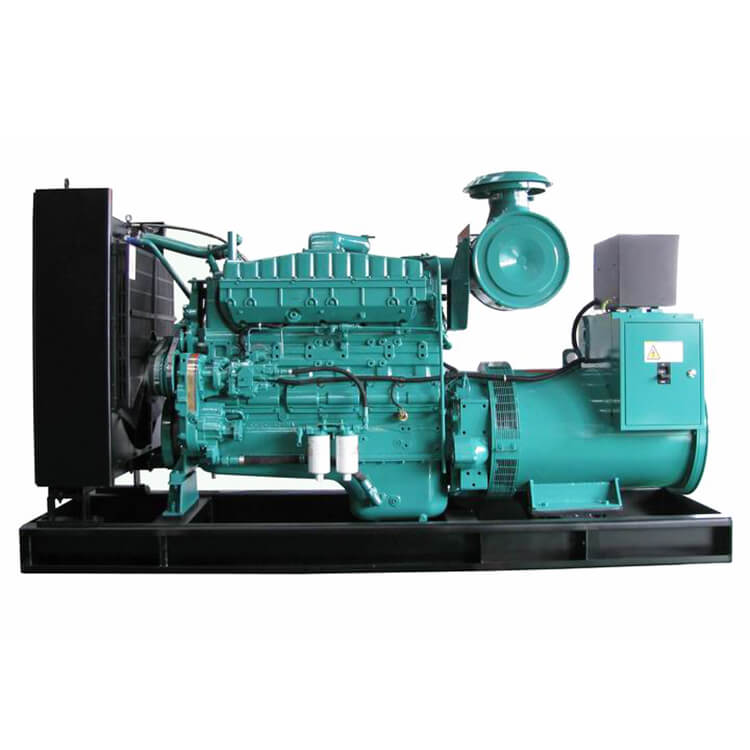

LS250G Diesel Generator Set, driven by the powerful Cummins NTA855-G1A engine, delivers a robust output of 250kW (313kVA) at 1500 rpm for 50Hz applications. Designed for industrial-grade performance, this genset offers outstanding fuel efficiency, durability, and long operating life. With a strong chassis, customizable control panel, and compatibility with AMF and ATS systems, the LS250G is the ideal power solution for heavy-duty continuous or standby use.
Main Features
- Powered by Cummins NTA855-G1A Engine – A turbocharged and aftercooled 6-cylinder diesel engine known for its high output, durability, and excellent performance under heavy loads.
- Rated Power: 250kW / 313kVA – Suitable for large-scale industrial applications, critical facility backup, and power-intensive environments.
- Stable Operation at 1500 rpm – Engineered for consistent voltage and frequency, ensuring smooth operation of sensitive or high-load equipment.
- Advanced Control Panel Options – Available with digital or analog controllers, supporting features like auto start/stop, AMF (Automatic Mains Failure), and remote monitoring.
- Heavy-Duty Steel Base Frame with Integrated Fuel Tank – Built for rugged use with anti-vibration mounts, ensuring stability and extended operation hours.
Generator Specification
| Generator Model | LS250G |
| Engine Model | NTA855-G1A |
| Rated speed | 1500rpm |
| Fuel Consumption(L/h) | 55 |
| Prime Power | 220KW/275KVA |
| Standby Power | 250KW/313KVA |
| Length(mm) | 2900 |
| Width(mm) | 1000 |
| Height(mm) | 1750 |
| Net Weight(kg) | 2450 |
Standard Generator Set List
| Generator Model | Engine Model | Standby Power | Prime Power | Speed | Fuel Consumption | ||
| kW | kVA | kW | kVA | rpm | L/h | ||
| LS36G | 4BT3.9-G2 | 36 | 45 | 32 | 40 | 1500 | 8 |
| LS140G | 6CTA8.3-G2 | 140 | 175 | 120 | 150 | 1500 | 30 |
| LS160G | 6CTA8.3-G2 | 160 | 200 | 140 | 175 | 1800 | 36 |
| LS220G | NT855-GA | 220 | 275 | 200 | 250 | 1500 | 41 |
| LS250G | NTA855-G1A | 250 | 313 | 220 | 275 | 1500 | 55 |
| LS280G | NTA855-G1 | 280 | 350 | 250 | 313 | 1800 | 61 |
| LS280G | MTAA11-G3 | 280 | 350 | 250 | 313 | 1500 | 61 |
| LS300G | NTA855-G1B | 300 | 375 | 275 | 344 | 1800 | 68 |
| LS300G | NTA855-G2A | 300 | 375 | 275 | 344 | 1500 | 68 |
| LS400G | KTA19-G2 | 400 | 500 | 360 | 450 | 1800 | 85 |
| LS400G | KTA19-G3 | 400 | 500 | 360 | 450 | 1500 | 85 |
| LS450G | KTA19-G3A | 450 | 563 | 400 | 500 | 1500 | 98 |
| LS450G | KTA19-G3 | 450 | 563 | 400 | 500 | 1800 | 98 |
| LS450G | KTA19-G4 | 450 | 563 | 400 | 500 | 1500 | 98 |
| LS550G | KTAA19-G5 | 550 | 688 | 470 | 588 | 1800 | 117 |
| LS660G | KTA38-G2 | 660 | 838 | 600 | 750 | 1500 | 147 |
| LS710G | KTA38-G2B | 710 | 888 | 640 | 800 | 1500 | 160 |
| LS880G | KTA38-G5 | 880 | 1100 | 800 | 1000 | 1500 | 200 |
| LS1100G | KTA50-G3 | 1100 | 1375 | 1000 | 1250 | 1500 | 245 |
| LS1100G | QSK38-G5 | 1150 | 1438 | 960 | 1200 | 1800 | 240 |
| LS1320G | KTA50-G8 | 1320 | 1650 | 1100 | 1375 | 1500 | 294 |
| LS1320G | KTA50-GS8 | 1320 | 1650 | 1200 | 1500 | 1500 | 300 |
