Product Description

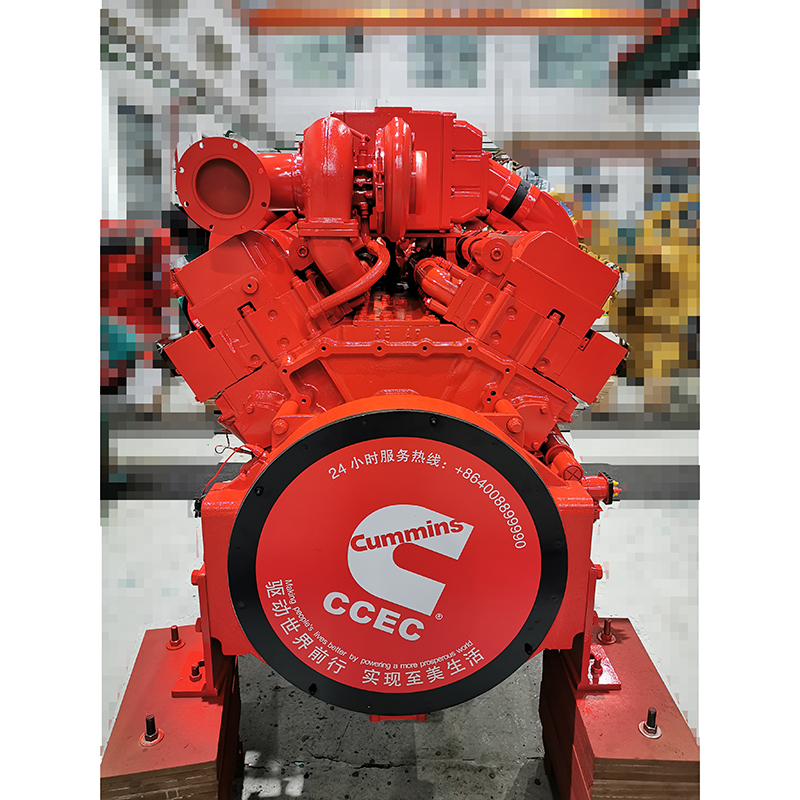

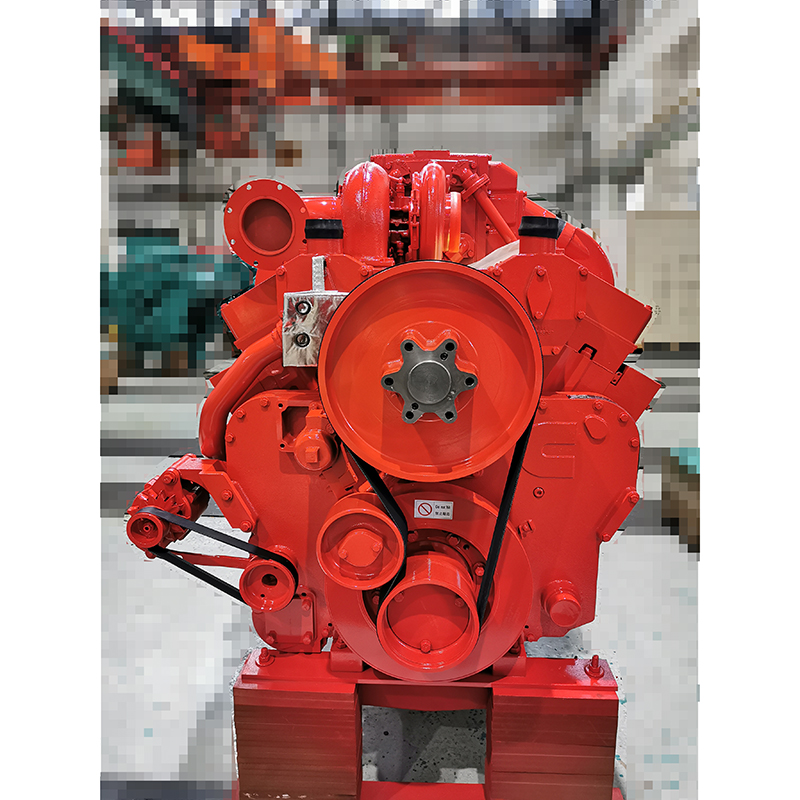

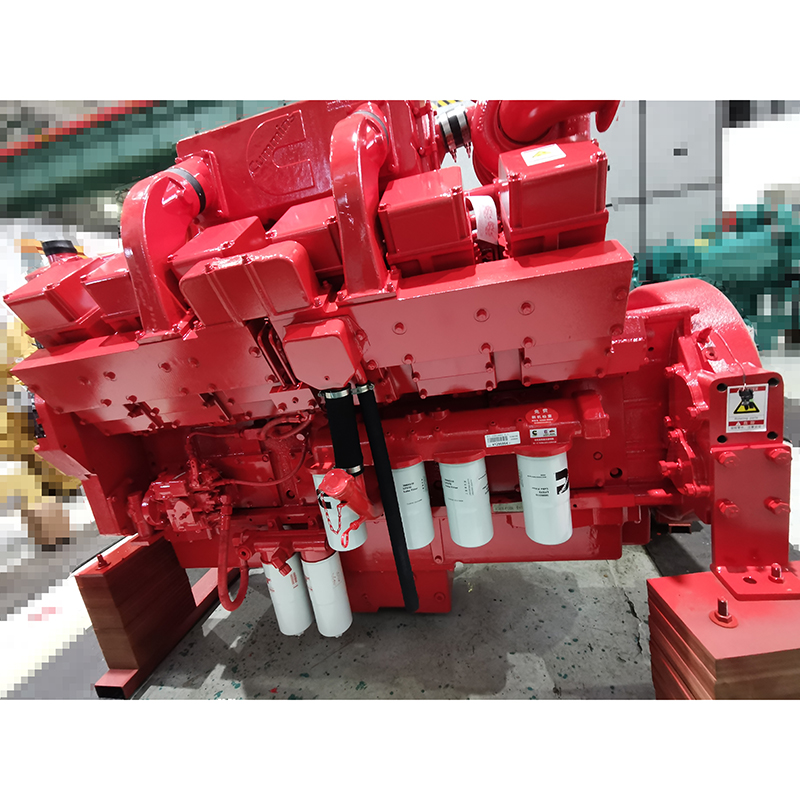

Genuine Cummins Engine K38 KTA38-P for Pump is a 38-liter heavy-duty diesel engine designed specifically for medium-to-large pump drive applications. Featuring advanced turbocharging and aftercooling technology, the KTA38-P delivers strong horsepower, reliable torque, and proven durability. Positioned between the K19 and K50 series, it offers an optimal balance of power and fuel efficiency, making it a trusted choice for industries that require continuous operation in demanding environments.
Cummins KTA38-P1200 Technical Specification Sheet
| Parameter | Specification |
| Engine Model | KTA38-P1200 |
| Max Power (HP) | 1200 HP |
| Max Power (kW) | 895 kW |
| Rated Speed (RPM) | 1800 |
| Bore x Stroke (mm) | 159 x 159 |
| Displacement (L) | 37.8 |
| No. of Cylinders | 12 / V-Type |
| Air Intake method | Turbocharged and Aftercooled (Dual Turbo) |
| Compression Ratio | 13.9:1 |
| Fuel System | PT Fuel System |
| Governor Type | Electronic or Mechanical (depending on configuration) |
| Cooling System | Closed Water-Cooled System |
| Starting Method | Electric / Air Start |
| Emission Standard | Non-road use, not emissions certified |
| Typical Applications | Industrial pumps |
Cummins KTA38-P Series Engine Core Specification Comparison
| Parameter | KTA38-P1000 | KTA38-P1100 | KTA38-P1200 | KTA38-P1400 |
| Max Power (HP) | 1000 HP | 1100 HP | 1200 HP | 1400 HP |
| Max Power (kW) | 746 kW | 820 kW | 895 kW | 1044 kW |
| Rated Speed (RPM) | 1800 | 1800 | 1800 | 1800 |
| Displacement (L) | 37.8 | 37.8 | 37.8 | 37.8 |
| Bore x Stroke (mm) | 159 x 159 | 159 x 159 | 159 x 159 | 159 x 159 |
| No. of Cylinders | 12 / V-type | 12 / V-type | 12 / V-type | 12 / V-type |
| Air intake method | Turbocharged & Aftercooled | Turbocharged & Aftercooled | Turbocharged & Aftercooled | Turbocharged & Aftercooled |
| Compression Ratio | 13.9:1 | 13.9:1 | 13.9:1 | 13.9:1 |
| Fuel System | PT Fuel System | PT Fuel System | PT Fuel System | PT Fuel System |
| Cooling System | Closed Water-Cooled | Closed Water-Cooled | Closed Water-Cooled | Closed Water-Cooled |
| Starting Method | Electric / Air Start | Electric / Air Start | Electric / Air Start | Electric / Air Start |
Features & Benefits
- Strong Power Performance – 38L displacement with high horsepower to drive medium-to-large pumps.
- Balanced Efficiency & Durability – Provides robust output while maintaining excellent fuel economy.
- Reliable Under Harsh Conditions – Trusted in mining, marine, oilfield, and industrial operations.
- Ease of Service & Maintenance – Engineered for reduced downtime with globally available parts.
- Authentic Cummins Quality – 100% genuine engine backed by Cummins’ worldwide support network.
Typical Applications
- Medium-to-Large Industrial Water Pumps
- Fire-Fighting and Emergency Pump Systems
- Irrigation and Flood Control Pumps
- Oilfield and Mining Pump Equipment
- Marine and Offshore Pumping Operations
