Product Description

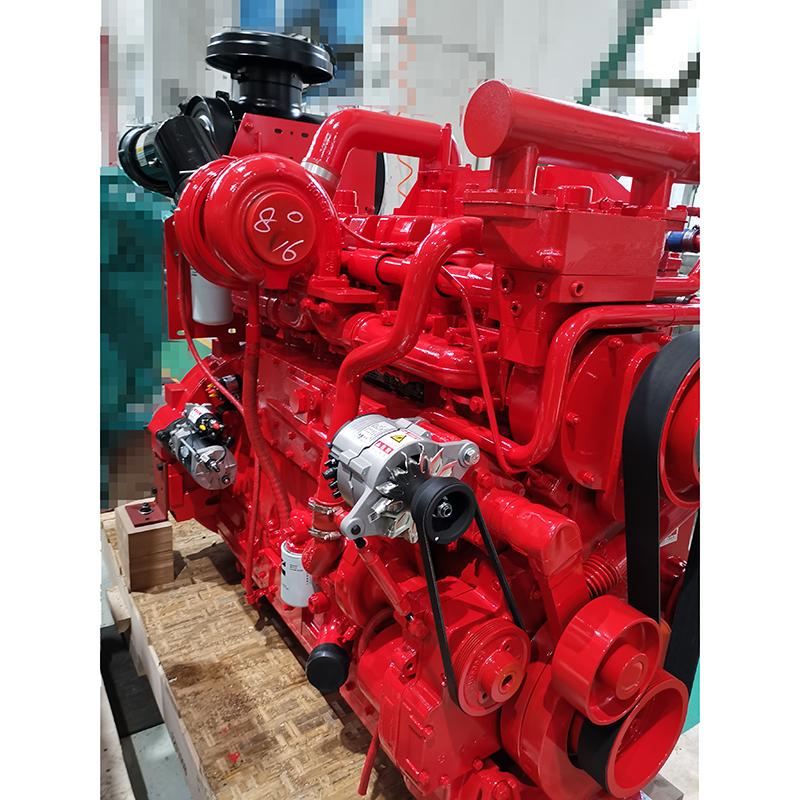

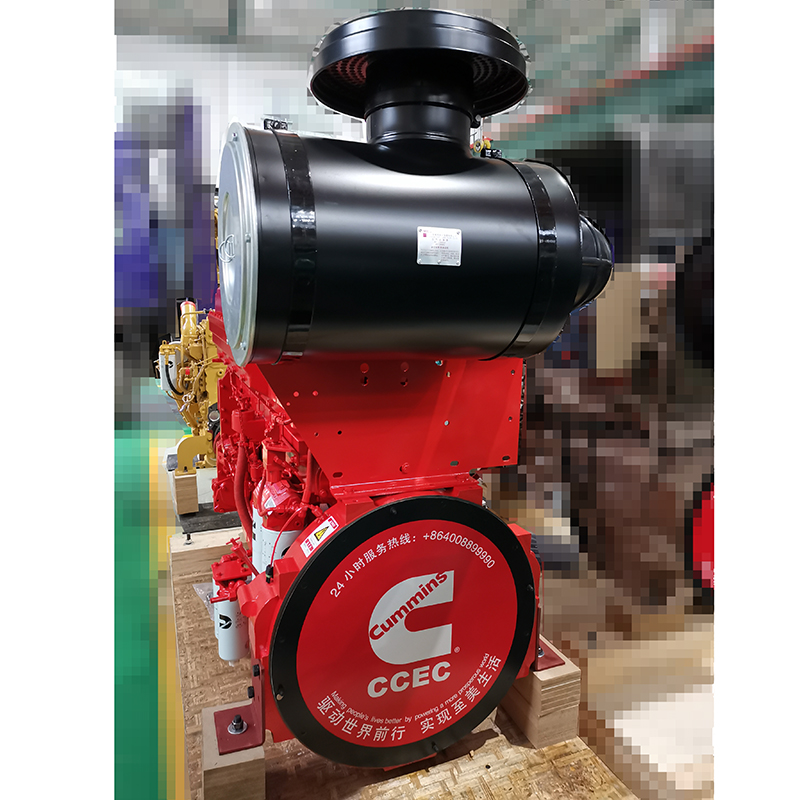

The New Cummins Original Engine K19 KTA19-P for Pump is a heavy-duty 19-liter diesel engine designed to deliver reliable power for industrial pump applications. With advanced turbocharging and aftercooling technology, the KTA19-P ensures high efficiency, durability, and consistent performance even under demanding conditions. Built with Cummins’ proven engineering, it provides maximum uptime and low operating costs, making it the ideal power solution for critical pumping operations.
Cummins KTA19-P700 Technical Data Sheet
| Item | Specification |
| Engine Model | KTA19-P700 |
| Number of cylinders / Structure | 6 cylinders, In-line, 4-stroke |
| Displacement | 19 L (1150 in³) |
| Bore × Stroke | 159 mm × 159 mm (6.25″ × 6.25″) |
| Compression Ratio | 13.9 : 1 |
| Turbocharger / Intercooler | Turbocharged and Aftercooled (Water/Air Intercooler) |
| Fuel System | Cummins PT Fuel System |
| Rated Power Output | 522 kW (700 HP) @ 1800 rpm |
| Peak Torque | 2769 Nm @ 1300–1400 rpm (varies by configuration) |
| Idle Speed | 675 rpm |
| Maximum No-load Speed | 2100–2450 rpm |
| Fuel Consumption | 210 g/kWh (≈ 71 gal/hr or 269 L/h at full load) |
| Cooling System | Closed Water-Cooled |
| Lubrication Oil Capacity | 76 L (20 US gal) |
| Coolant Capacity | 30 L (engine only); 111 L (total system) |
| Dimensions (L×W×H) | 2142–2300 mm × 966–1150 mm × 1704–1950 mm |
| Net Weight | 1633–1699 kg; Shipping weight up to 2400 kg |
| Starting System | 24 V Electric (12 V optional) |
| Electrical System | 24 V standard |
| Emission Standard | IMO Tier II (marine) / Euro II (off-road) |
| Typical Applications | Industrial pumps |
Cummins KTA19-P Series Core Specification Comparison
| Parameter | KTA19-P450 | KTA19-P500 | KTA19-P600 | KTA19-P700 |
| Engine Model | KTA19-P450 | KTA19-P500 | KTA19-P600 | KTA19-P700 |
| Max Power (HP) | 450 HP | 500 HP | 600 HP | 700 HP |
| Max Power (kW) | 336 kW | 373 kW | 447 kW | 522 kW |
| Rated Speed (RPM) | 1800 | 1800 | 1800 | 1800 |
| Displacement (L) | 18.9 | 18.9 | 18.9 | 18.9 |
| Bore x Stroke (mm) | 159 x 159 | 159 x 159 | 159 x 159 | 159 x 159 |
| No. of Cylinders | 6 / Inline | 6 / Inline | 6 / Inline | 6 / Inline |
| Air intake method | Turbocharged & Aftercooled | Turbocharged & Aftercooled | Turbocharged & Aftercooled | Turbocharged & Aftercooled |
| Compression Ratio | 13.9:1 | 13.9:1 | 13.9:1 | 13.9:1 |
| Fuel System | PT Fuel System | PT Fuel System | PT Fuel System | PT Fuel System |
| Cooling System | Closed Water-Cooled | Closed Water-Cooled | Closed Water-Cooled | Closed Water-Cooled |
| Starting Method | Electric / Air Start | Electric / Air Start | Electric / Air Start | Electric / Air Start |
Features & Benefits
- High Power Output – 19L displacement with strong torque to drive large-capacity pumps.
- Turbocharged & Aftercooled – Ensures superior fuel efficiency and optimized performance.
- Reliable Starting & Operation – Proven performance in harsh environments such as mines, oilfields, and offshore platforms.
- Low Maintenance & Easy Serviceability – Designed with accessible components to minimize downtime.
- Genuine Cummins Quality – 100% original Cummins parts ensure performance consistency and global support.
Typical Applications
- Industrial Water Pumps
- Fire-Fighting Pumps
- Flood Control and Irrigation Pumps
- Marine and Offshore Pumping Operation
