Detailed Product Information
Product Description

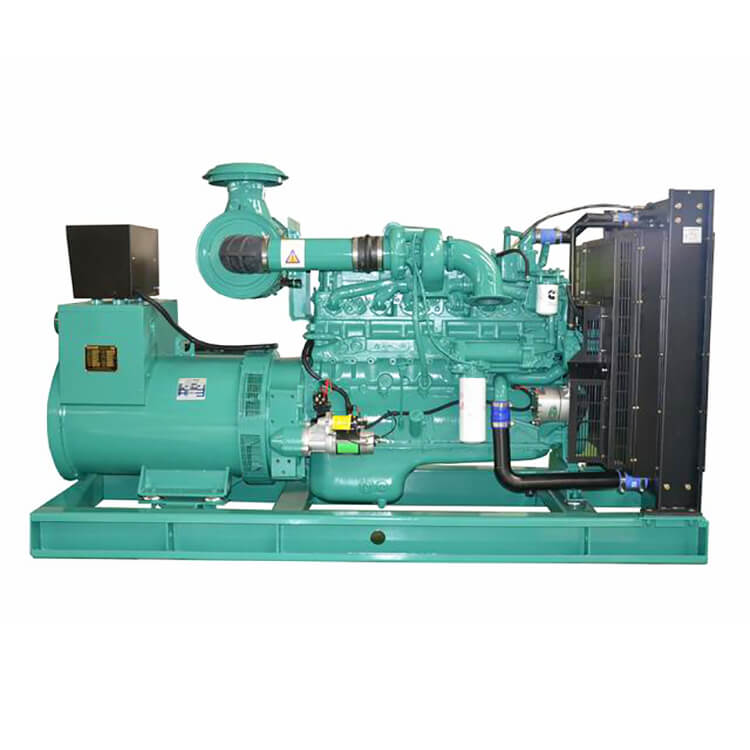

LS300G Diesel Generator Set, driven by the Cummins NTA855-G2A engine, delivers a reliable output of 300kW (375kVA) at 1500 rpm and 50Hz frequency. The NTA855 series engine, known for its robust performance and fuel efficiency, ensures durability and consistent power in demanding conditions. With advanced control options, durable construction, and a global support network, the LS300G is an ideal solution for both prime and standby applications in industrial, commercial, and remote settings.
Main Features
- Cummins NTA855-G2A Engine – Equipped with a 6-cylinder, turbocharged, and aftercooled diesel engine known for its durability, fuel economy, and high load-bearing capacity.
- Rated Output: 300kW / 375kVA – Delivers consistent and clean power suitable for both continuous and standby use in large-scale industrial and commercial applications.
- Advanced Control Panel Options – Compatible with Deep Sea, ComAp, and SmartGen controllers supporting auto-start/stop, AMF/ATS, and remote monitoring.
- Efficient Cooling & Fuel Systems – Optimized for long-duration performance with effective radiator cooling and low fuel consumption.
- Wide Range of Applications – Suitable for large industrial and mining enterprises, telecom hubs, government facilities, hospitals, schools, and off-grid areas as a prime or standby power source.
Generator Specification
Generator Model | LS300G |
Engine Model | NTA855-G2A |
Rated speed | 1500rpm |
Fuel Consumption(L/h) | 68 |
Prime Power | 275KW/344KVA |
Standby Power | 300KW/375KVA |
Length(mm) | 2900 |
Width(mm) | 1000 |
Height(mm) | 1750 |
Net Weight(kg) | 2570 |
Standard Generator Set List
Generator Model | Engine Model | Standby Power | Prime Power | Speed | Fuel Consumption | ||
kW | kVA | kW | kVA | rpm | L/h | ||
LS36G | 4BT3.9-G2 | 36 | 45 | 32 | 40 | 1500 | 8 |
LS140G | 6CTA8.3-G2 | 140 | 175 | 120 | 150 | 1500 | 30 |
LS160G | 6CTA8.3-G2 | 160 | 200 | 140 | 175 | 1800 | 36 |
LS220G | NT855-GA | 220 | 275 | 200 | 250 | 1500 | 41 |
LS250G | NTA855-G1A | 250 | 313 | 220 | 275 | 1500 | 55 |
LS280G | NTA855-G1 | 280 | 350 | 250 | 313 | 1800 | 61 |
LS280G | MTAA11-G3 | 280 | 350 | 250 | 313 | 1500 | 61 |
LS300G | NTA855-G1B | 300 | 375 | 275 | 344 | 1800 | 68 |
LS300G | NTA855-G2A | 300 | 375 | 275 | 344 | 1500 | 68 |
LS400G | KTA19-G2 | 400 | 500 | 360 | 450 | 1800 | 85 |
LS400G | KTA19-G3 | 400 | 500 | 360 | 450 | 1500 | 85 |
LS450G | KTA19-G3A | 450 | 563 | 400 | 500 | 1500 | 98 |
LS450G | KTA19-G3 | 450 | 563 | 400 | 500 | 1800 | 98 |
LS450G | KTA19-G4 | 450 | 563 | 400 | 500 | 1500 | 98 |
LS550G | KTAA19-G5 | 550 | 688 | 470 | 588 | 1800 | 117 |
LS660G | KTA38-G2 | 660 | 838 | 600 | 750 | 1500 | 147 |
LS710G | KTA38-G2B | 710 | 888 | 640 | 800 | 1500 | 160 |
LS880G | KTA38-G5 | 880 | 1100 | 800 | 1000 | 1500 | 200 |
LS1100G | KTA50-G3 | 1100 | 1375 | 1000 | 1250 | 1500 | 245 |
LS1100G | QSK38-G5 | 1150 | 1438 | 960 | 1200 | 1800 | 240 |
LS1320G | KTA50-G8 | 1320 | 1650 | 1100 | 1375 | 1500 | 294 |
LS1320G | KTA50-GS8 | 1320 | 1650 | 1200 | 1500 | 1500 | 300 |
